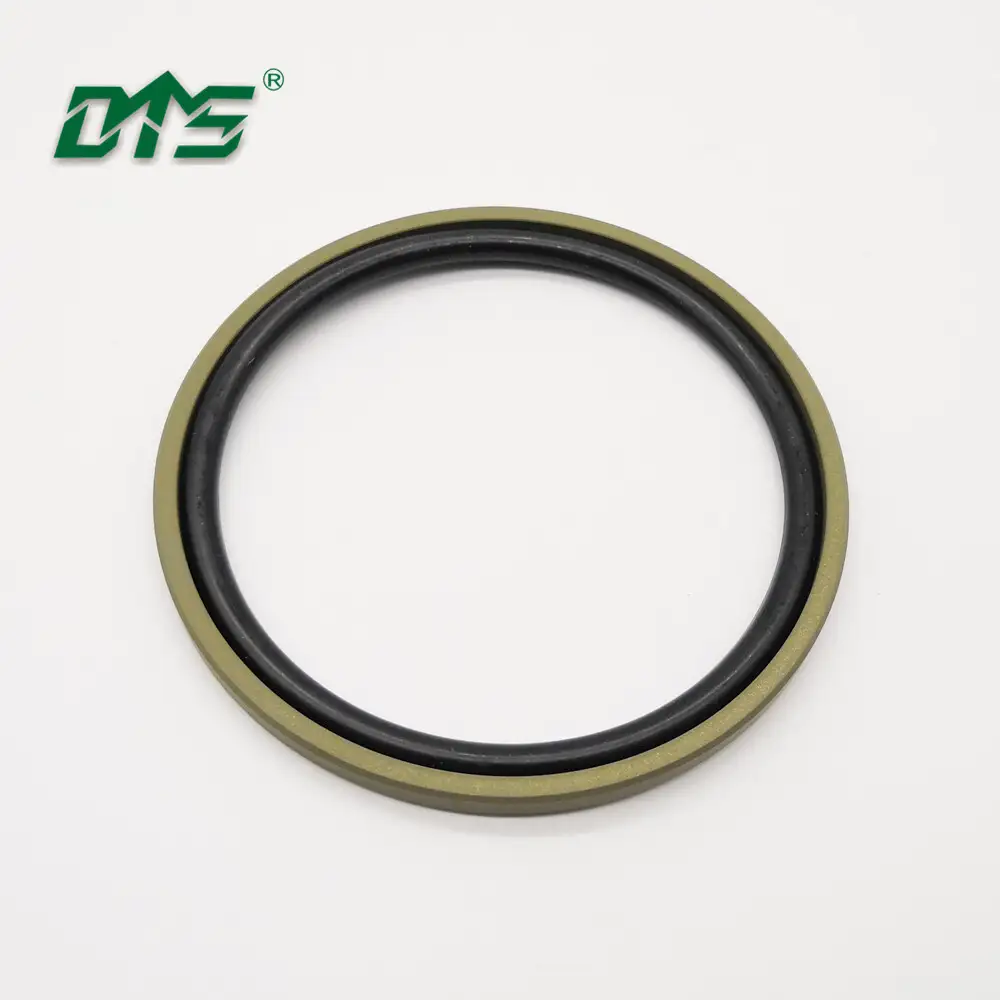

bronze PTFE piston seal glyd ring for hydraulic cylinder GSF
|
Item |
Specifications |
|
Products name |
GSF |
|
Material |
Filled PTFE / NBR or FKM |
|
Color |
Green / Brown |
|
The application and performance |
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon. |
|
Sizes |
3~1600mm |
|
Pressure |
0~40MPa |
|
Temperature |
-30℃ +200℃ |
|
Speed |
2m/s |
|
Medium |
hydraulic oil, flame retardant liquid, water and others |
3D Digram
Pictures
If the sizes you require are not in above list or you need more details, just tell us freely.
1. We have more than 10 years experience for seals production.
2. We are located in Foshan city which near by Guangzhou.
3. We have about 120 staffs.
4. We are specialized in producing PTFE seals and O-Rings.
5. We passed ISO 9001:2008 and TS 16949:2009.
6. Our tenet is " First Class Disign, First Class Manufacture,
First Class Service."
