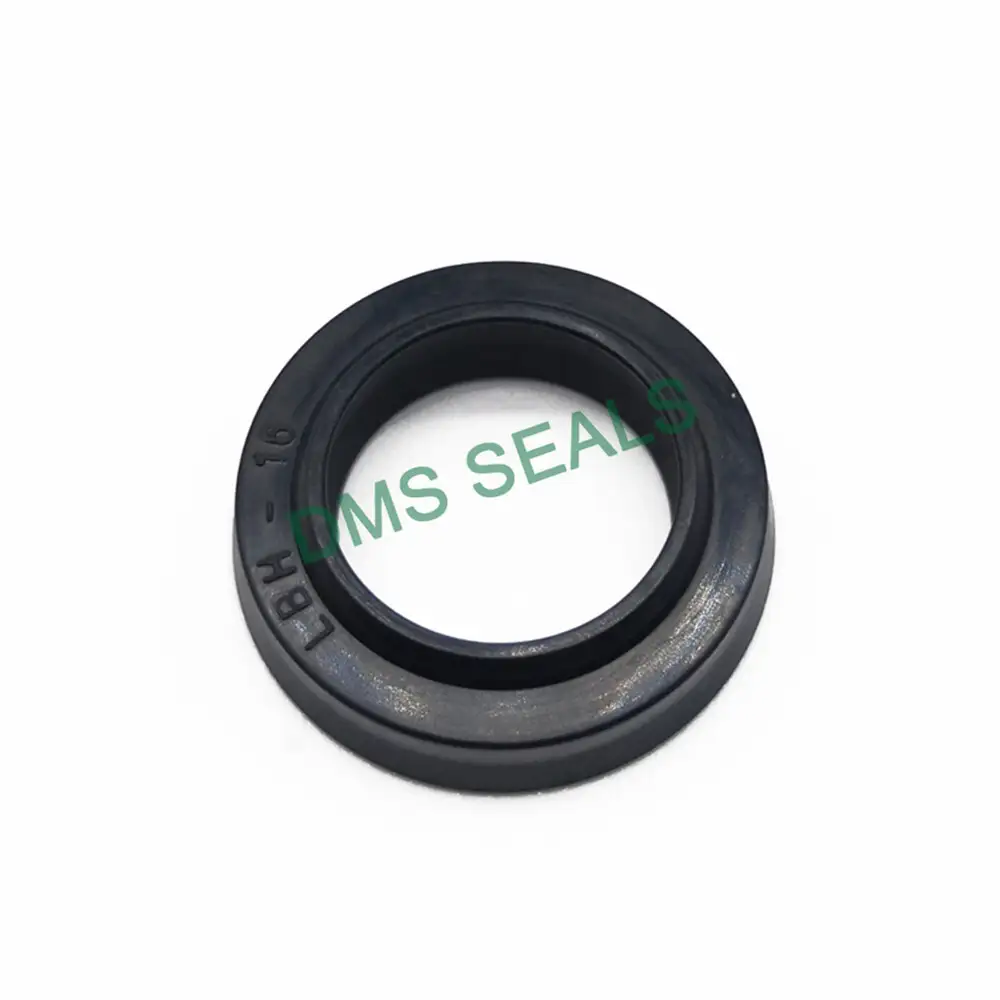

Hydraulic Valve FKM Shaft Seals Type Lbh
|
LBH is an annular cover composed of one or several parts, which is fixed on one ring or washer of the bearing and contacts with another ring or washer or forms a narrow labyrinth gap to prevent the leakage of lubricating oil and the intrusion of foreign objects. It is a part to remove dirt, sand, rain, and frost that the reciprocating piston rod adheres to on the external surface of the cylinder to prevent the external dust and rain from entering the inner part of the sealing mechanism. |
Advantages: 1.Good wear resistance 2.Wide range of applications 3.Relatively easy to install |
| NO. | SIZE | NO. | SIZE |
| 1 | LBH11.2*19.2*6 | 36 | LBH85*95*8 |
| 2 | LBH12*20*6 | 37 | LBH90*100*8 |
| 3 | LBH12.5*20.5*6 | 38 | LBH95*105*8 |
| 4 | LBH14*22*6 | 39 | LBH98*108*8 |
| 5 | LBH16*24*6 | 40 | LBH100*110*8 |
| 6 | LBH18*26*6 | 41 | LBH105*115*8 |
| 7 | LBH20*28*6 | 42 | LBH110*120*8 |
| 8 | LBH22*30*6 | 43 | LBH112*122*8 |
| 9 | LBH22.4*30.4*6 | 44 | LBH115*125*8 |
| 10 | LBH23.5*31.5*6 | 45 | LBH118*128*9.5 |
| 11 | LBH25*33*6 | 46 | LBH120*130*9.5 |
| 12 | LBH28*36*6 | 47 | LBH125*138*9.5 |
| 13 | LBH30*38*6.5 | 48 | LBH130*143*9.5 |
| 14 | LBH31.5*39.5*6.5 | 49 | LBH136*149*9.5 |
| 15 | LBH32*40*6.5 | 50 | LBH140*153*9.5 |
| 16 | LBH35*43*6.5 | 51 | LBH145*158*9.5 |
| 17 | LBH35.5*43.5*6.5 | 52 | LBH150*163*9.5 |
| 18 | LBH36*44*6.5 | 53 | LBH153*165*9.5 |
| 19 | LBH38*46*6.5 | 54 | LBH155*167*9.5 |
| 20 | LBH40*48*6.5 | 55 | LBH160*174*9.5 |
| 21 | LBH45*53*6.5 | 56 | LBH165*179*9.5 |
| 22 | LBH48*56*6.5 | 57 | LBH170*184*9.5 |
| 23 | LBH50*58*6.5 | 58 | LBH175*189*9.5 |
| 24 | LBH53*61*6.5 | 59 | LBH180*190*9.5 |
| 25 | LBH55*63*6.5 | 60 | LBH190*204*9.5 |
| 26 | LBH56*64*6.5 | 61 | LBH200*214*9.5 |
| 27 | LBH58*66*6.5 | 62 | LBH204*218*9.5 |
| 28 | LBH60*68*6.5 | 63 | LBH220*234*9.5 |
| 29 | LBH63*71*6.5 | 64 | LBH224*237*7/9.5 |
| 30 | LBH65*73*6.5 | 65 | LBH225*238*7/9.5 |
| 31 | LBH67*75*6.5 | 66 | LBH230*244*7/9.5 |
| 32 | LBH70*80*8 | 67 | LBH240*256*10/13 |
| 33 | LBH71*81*8 | 68 | LBH250*260*10/13 |
| 34 | LBH75*85*8 | 69 | LBH280*296*9/12 |
| 35 | LBH80*90*8 | 70 | LBH310*325*9/12 |
