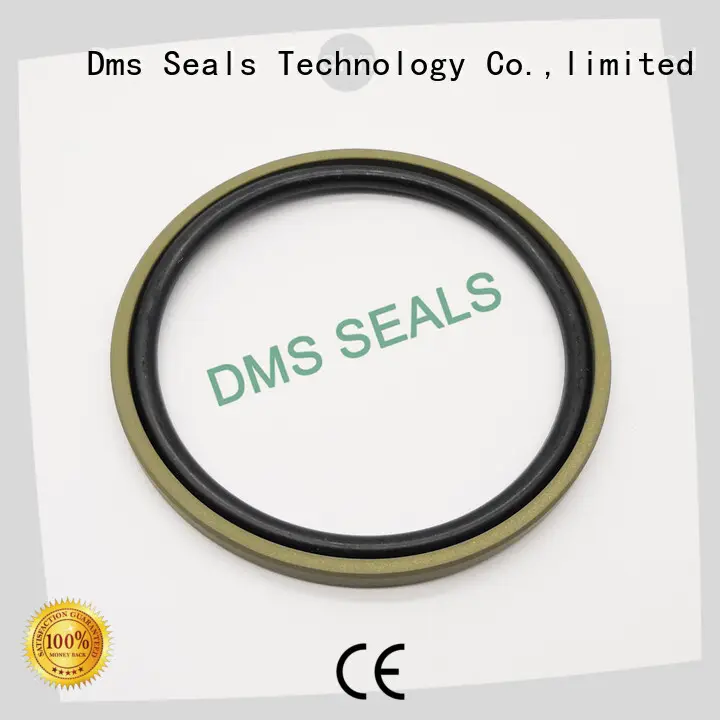

40% Bronze Filled PTFE Hydraulic Piston Glyd Ring Piston Seal Manufacturer1 1

40% Bronze Filled PTFE Hydraulic Piston Glyd Ring Piston Seal Manufacturer1 2

40% Bronze Filled PTFE Hydraulic Piston Glyd Ring Piston Seal Manufacturer1

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. DMS Seal Manufacturer hydraulic cylinder piston seals is carefully chosen from top grade suppliers. The high pressure seals have strong wear resistance to hard conditions
2. Thanks to its easy operation and maintenance during its service life, this product can greatly help reduce operation costs. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. Implementing quality management on the product helps reduce customers' costs. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
4. It has been rigorously tested for quality and performance. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience

1. Installation Recommendation

2. Installation Sizes

Bore Diameter D_N H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d₁ h9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
8-14.9	15-39.9	-	D_N-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	D_N-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	D_N-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	D_N-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	D_N-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	D_N-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	D_N-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	D_N-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

D_N H9

d₁ h9

L₁+0.2

3.1

5.1

7.1

2.2

GSF8*3.1*2.2

GSF10*5.1*2.2

GSF12*7.1*2.2

2.90*1.78

4.80*1.8

6.70*1.8

9.1

10.1

7.5

2.2

3.2

GSF14*9.1*2.2

GSF15*10.1*2.2

GSF15*7.5*3.2

8.75*1.8

7.59*2.62

8.75*1.8

11.1

8.5

13.1

2.2

3.2

2.2

GSF16*11.1*2.2

GSF16*8.5*3.2

GSF18*13.1*2.2

10.82*1.78

7.59*2.62

12.42*1.78

10.5

15.1

12.5

3.2

2.2

3.2

GSF18*10.5*3.2

GSF20*15.1*2.2

GSF20*12.5*3.2

9.19*2.62

14.00*1.78

12.37*2.62

19.1

16.5

17.5

2.2

3.2

GSF24*19.1*2.2

GSF24*16.5*3.2

GSF25*17.5*3.2

18.77*1.78

15.54*2.62

17.12*2.62

20.5

4.2

3.2

4.2

GSF25*14*4.2

GSF28*20.5*3.2

GSF28*17*4.2

13.87*3.53

20.29*2.62

15.47*3.53

22.5

24.5

3.2

4.2

3.2

GSF30*22.5*3.2

GSF30*19*4.2

GSF32*24.5*3.2

21.89*2.62

26.70*1.78

23.47*2.62
