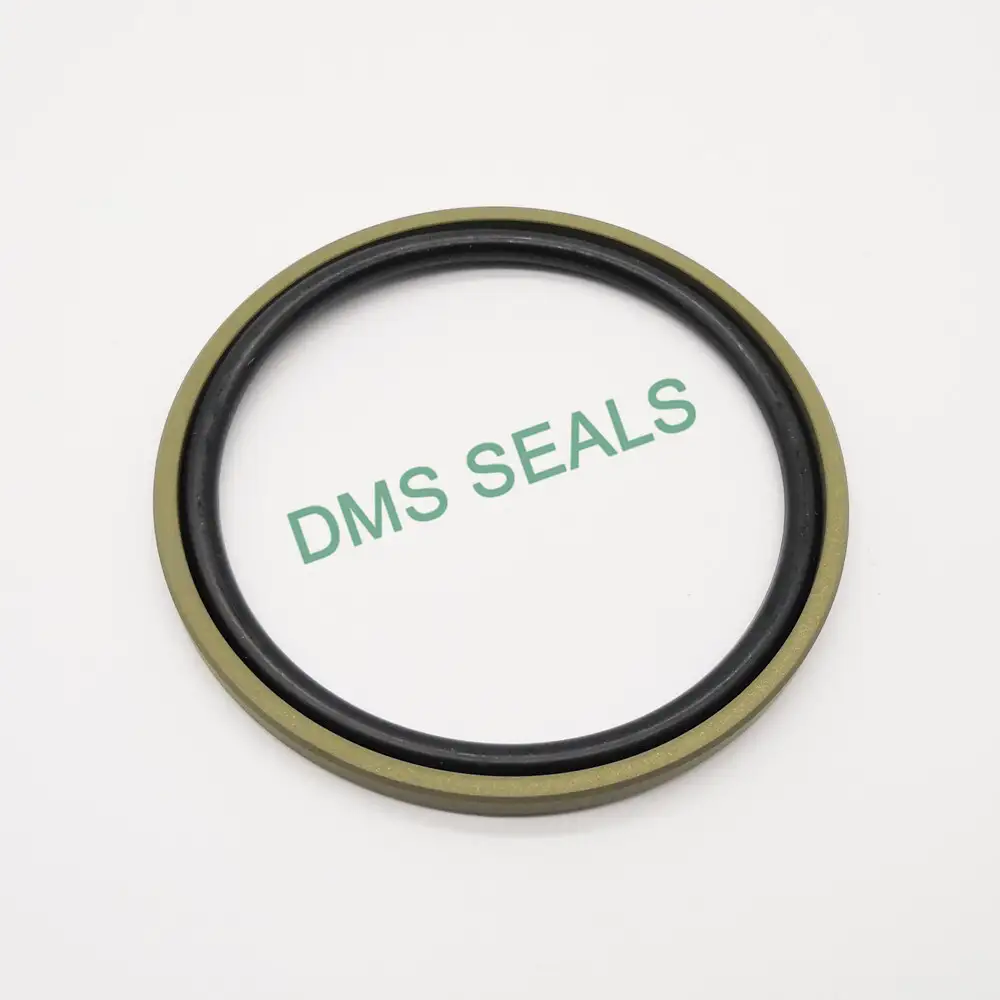

40% Bronze Filled PTFE Hydraulic Piston Glyd Ring Piston Seal Manufacturer

Standard Application

Light Application

Heavy Duty Application

d₁ h9

L₁+0.2

R₁

10MPa

20MPa

40MPa

d₂

8-14.9

15-39.9

-

D_N-4.9

2.2

0.4

0.3

0.20

0.15

1.78

15-39.9

40-79.9

-

D_N-7.5

3.2

0.6

0.4

0.25

0.15

2.62

40-79.9

80-132.9

15-39.9

D_N-11.0

4.2

1.0

0.4

0.25

0.20

3.53

80-132.9

133-329.9

40-79.9

D_N-15.5

6.3

1.3

0.5

0.30

0.20

5.33

133-329.9

330-699.9

80-132.9

D_N-21.0

8.1

1.8

0.6

0.35

0.25

7.00

330-669.9

670-99.9

133-329.9

D_N-24.5

8.1

1.8

0.6

0.35

0.25

7.00

670-999.9

≥1000

330-669.9

D_N-28.0

9.5

2.5

0.7

0.50

0.30

8.40

≥1000

≥1000

≥1000

D_N-38.0

13.8

3.0

1.0

0.70

0.60

12.00

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3 - 1600mm

0 - 60MPa

-45℃ +200℃

15 m/s

hydraulic oil, flame retardant liquid, water and others

D_N H9

d₁ h9

L₁+0.2

8

10

12

3.1

5.1

7.1

2.2

2.2

2.2

GSF8*3.1*2.2

GSF10*5.1*2.2

GSF12*7.1*2.2

2.90*1.78

4.80*1.8

6.70*1.8

14

15

15

9.1

10.1

7.5

2.2

2.2

3.2

GSF14*9.1*2.2

GSF15*10.1*2.2

GSF15*7.5*3.2

8.75*1.8

7.59*2.62

8.75*1.8

16

16

18

11.1

8.5

13.1

2.2

3.2

2.2

GSF16*11.1*2.2

GSF16*8.5*3.2

GSF18*13.1*2.2

10.82*1.78

7.59*2.62

12.42*1.78

18

20

20

10.5

15.1

12.5

3.2

2.2

3.2

GSF18*10.5*3.2

GSF20*15.1*2.2

GSF20*12.5*3.2

9.19*2.62

14.00*1.78

12.37*2.62

24

24

25

19.1

16.5

17.5

2.2

3.2

3.2

GSF24*19.1*2.2

GSF24*16.5*3.2

GSF25*17.5*3.2

18.77*1.78

15.54*2.62

17.12*2.62

25

28

28

14

20.5

17

4.2

3.2

4.2

GSF25*14*4.2

GSF28*20.5*3.2

GSF28*17*4.2

13.87*3.53

20.29*2.62

15.47*3.53

30

30

32

22.5

19

24.5

3.2

4.2

3.2

GSF30*22.5*3.2

GSF30*19*4.2

GSF32*24.5*3.2

21.89*2.62

26.70*1.78

23.47*2.62
