DMS Seals ball bearing business wholesale as the guide sleeve

Company Advantages
1. DMS Seals is famous for its finest materials which are sourced from qualified suppliers. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. [企业简称] Not only has a large-scale and standardized production workshop, but also set up a high-quality, high-level technical development team and production management team, established a strict production management system and a perfect quality management system, to produce quality ball bearing business with good quality and low price provides a strong guarantee.
3. The product has undergone rigorous testing during the trial production phase. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
4. The most important difference between this product and other products is the long-term service life. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
5. Continuous and systematic quality management processes are carried out for providing quality guarantee. DMS Seals implements and optimizes its quality control systems

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

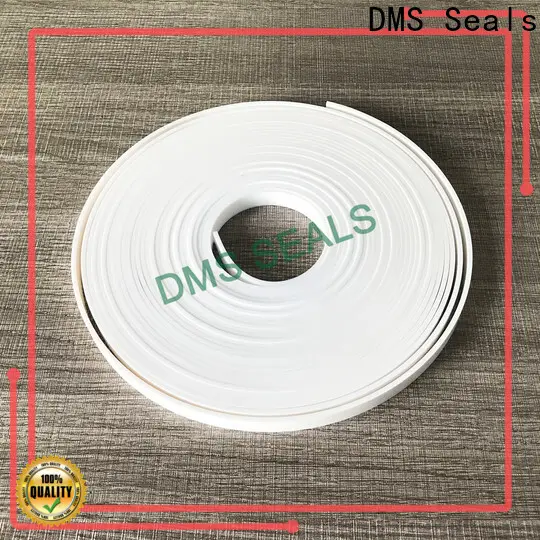

White virgin PTFE

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. The factory has a complete set of cutting-edge production technology and facilities that are manufactured by developed countries. With these advantages, we can achieve consecutive increased monthly product output thanks to these facilities.
2. has long been a target of Dms Seals Technology Co.,limited. Please contact us!
