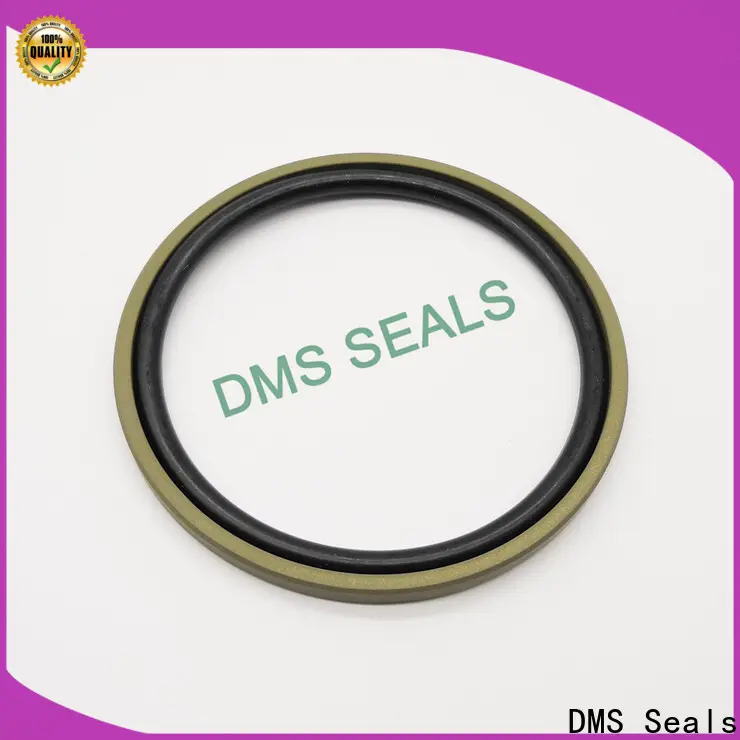

DMS Seals bearing seal manufacturers supplier for larger piston clearance

Company Advantages
1. A series of quality tests for DMS Seals bearing seal manufacturers will be conducted by the QC team. Its wires and cables, plug and socket, switching power supply will be strictly tested by specific machinery.
2. DMS Seals is meticulously manufactured. It has gone through those manufacturing processes, namely, cutting, sewing, fiber washing, dyeing, combing, and finishing.
3. DMS Seals has to undergo a visual inspection. It has to be checked if the plug, the cable is damaged in any way and the fuse rating is also checked.
4. DMS Seals bearing seal manufacturers has to go through the necessary tests. It has been tested in terms of strength, ductility impact resistance, hardness, and fracture toughness.
5. The products are durable and have long service life.
6. The product meets strict quality standards.
7. Strict testing: its current performance has been tested by third parties. It is also ready to be tested by users and will be continuously updated.
8. The service life of this product is highly guaranteed by the strict test procedure which is in line with international standard. It is tested to be high performance and user-friendly.
9. The product has been tested by a third-party authoritative agency, which is a great guarantee on its high quality and stable functionality.
10. Dms Seals Technology Co.,limited has always been setting shoulder with the requirements of world-class firms, and aspired to offer good quality products and services.
11. All defected bearing seal manufacturers will be picked up and not allowed to deliver to our customers.
12. The technology Dms Seals Technology Co.,limited mastered has provided a strong guarantee for the good quality of its bearing seal manufacturers .
13. We promise on-time delivery for bearing seal manufacturers , so you can run your business without any delay.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a leading expert in bearing seal manufacturers manufacture in China. Dms Seals Technology Co.,limited has now developed into a comprehensive custom oil seals enterprise group integrating trade, logistics and investment. Dms Seals Technology Co.,limited's products sell well on international market.
2. We adopt world-advanced technology when manufacturing hydraulic seals distributors . we have successfully developed a variety of window seal suppliers series. We've been focusing on manufacturing high quality gaco seals supplier for domestic and abroad customers.
3. Professional after-sale service and superior mechanical seals houston from Dms Seals Technology Co.,limited will satisfy you. Get price! Dms Seals Technology Co.,limited is committed to developing DMS Seals into world-renowned brands. Get price! DMS Seals holds the firm belief that this brand will become a worldwide famous speaker for automotive seal manufacturers . Get price!
