DMS Seals metric hydraulic cylinder seals manufacturer for sale

Company Advantages
1. The material of DMS Seals is not only superior but also high quality with great durability. To reduce costs with high-efficiency work is the DMS's purpose
2. People who use this product will find it is not irritating to the skin. Instead, the touch is soft and comfortable. DMS Seals provides professional design and production of high-grade o-ring seals
3. As our QC team strictly and smoothly control the quality throughout the whole production process, the quality of the product is fully ensured. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

1. Installation Recommendation

2. Installation Sizes



Piston

P<5MPa	B=d+0.9	D<60	C=4	h <7	L=h+0.5
P 5-10MPa	B=d+0.7	D 60-180	C=6.5	h =7-8	L=h+0.8
P 10-20MPa	B=d+0.4	D 180-250	C=7.5	h >8	L=h+1.0
P 20-30MPa	B=d+0.2	D 250-400	C=10	h >8	L=h+1.0

Piston Rod

P<5MPa	B=D-0.9	D<60	C=4	D1=D-1	h<7	L=h+0.5
P 5-10MPa	B=D-0.7	D 60-180	C=5.5	D1=D-1	h=7-8	L=h+0.8
P 10-20MPa	B=D-0.4	D 120-180	C=6.5	D1=D-1	h>8	L=h+1.0
P 20-30MPa	B=D-0.2	D 180-250	C=7.5	D1=D-2	h>8	L=h+1.0
P 30-40MPa	B=D-0.1	D 250-400	C=10	D1=D-2	h>8	L=h+1.0

3. Application and properties

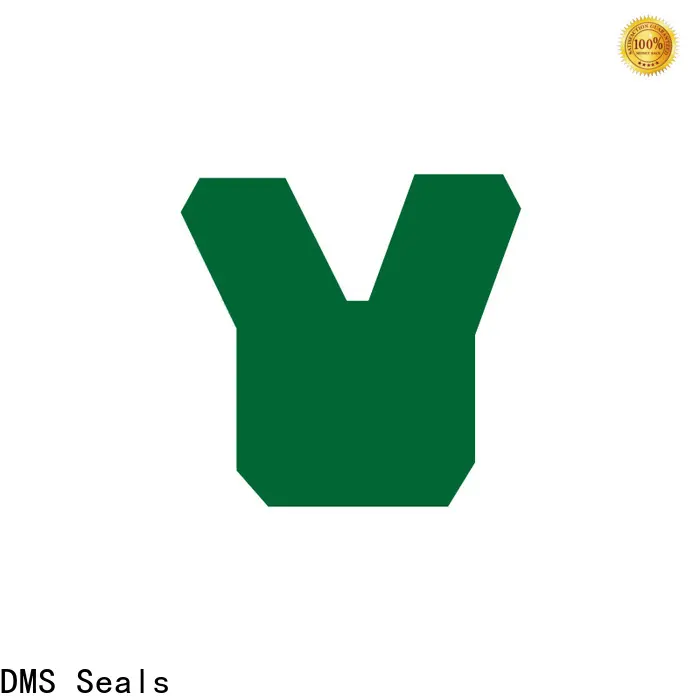

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.



4. Standard materials

TPU, CPU



5. Working condition

Pressure: CPU≤40MPa  TPU≤31.5MPa

Temperature: -35~+100℃

Speed: 0.5m/s

Medium: Hydraulic oils ( mineral oil-based )

Company Features
1. Dms Seals Technology Co.,limited has never been surpassed in technology and quality. We are powered by a team of manufacturing experts. They have accumulated years of experience and are working hard to push China manufacturing by providing the highest level of products.
2. Over the years, we have formed a strong customer base. We have made many efforts in extending the marketing channels in an efficient way. For example, we work hard to promote professional client service capability when facing clients from different countries.
3. Our factory is well equipped. It helps us to be flexible on product designing, as well as on prototyping or medium and large serial production. Dms Seals Technology Co.,limited always maintains long-term growth by providing superior service to customers with metric hydraulic cylinder seals . Get more info!
