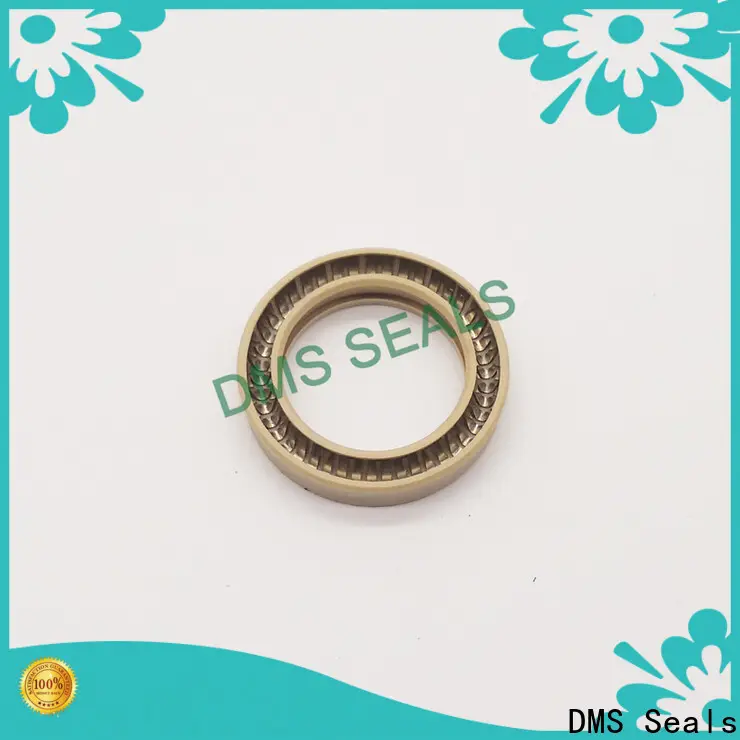

New carbon shaft seal supply for aviation

Company Advantages
1. The production technology of DMS Seals carbon shaft seal has been greatly improved, promoting standardization production.
2. While producing DMS Seals , the selection of raw materials is guaranteed.
3. With the help of our skilled engineers, DMS Seals carbon shaft seal is designed with a variety of innovative and practical designs.
4. The product is built to last for a long time. Its components do not easily wear over time and do not demand frequent maintenance, but can work for long.
5. The product has a high gloss and smooth surface. It is hand-sanded before assembly to eliminate out all the black spot, burrs, insect attack, and knot.
6. The filling materials will not penetrate through its high quality fabric after a long time of use and many washing.
7. As the product is more economical and practical than similar products in the industry, it will be more widely used.
8. The product shows great value in the field over time.
9. Dms Seals Technology Co.,limited always sticks to the high quality of carbon shaft seal .
10. The development of the product is consistent with the current industry trends.
11. The product sells worldwide and is deeply trusted by consumers, showing a great market prospect.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. Dms Seals Technology Co.,limited is a top notch carbon shaft seal production firm, with offices scattered around the world. Dms Seals Technology Co.,limited is the main developer and supplier of spring loaded double lip seal . Dms Seals Technology Co.,limited's business in rod end seals takes a great part in local economy.
2. Our company has a group of skilled employees. They have the appropriate skills to improve production, including communication, computer, planning, analytical and problem-solving skills. Our company has established an easy-to-cooperate team. At every step of the project-quotation, design, manufacturing, and maintenance, they will be there to quickly provide the answers the customer needs. Our company has excellent management. They have experience and knowledge in a wide range of areas related to manufacturing such as manufacturing processes and manufacturing efficiency. They can help the company achieve efficient production. We have experienced design professionals. Their expertise lies in concept visualization, product drawings, function analysis, and more. Their involvement in all aspects of product development has enabled the company to exceed every customer's expectations for product performance.
3. Dms Seals Technology Co.,limited always inspires us to safeguard and build our reputation . Get an offer! DMS Seals has made a determined effort to achieve the goal of becoming an international supplier of . Get an offer! Dms Seals Technology Co.,limited provides customers with competitive prices and a stable source of raw materials. Get an offer! We expect to sincerely cooperate with friends of various circles so as to build up the No. 1 brand in sic mechanical seal industry. Get an offer! High quality is consistently set first in Dms Seals Technology Co.,limited. Get an offer!
