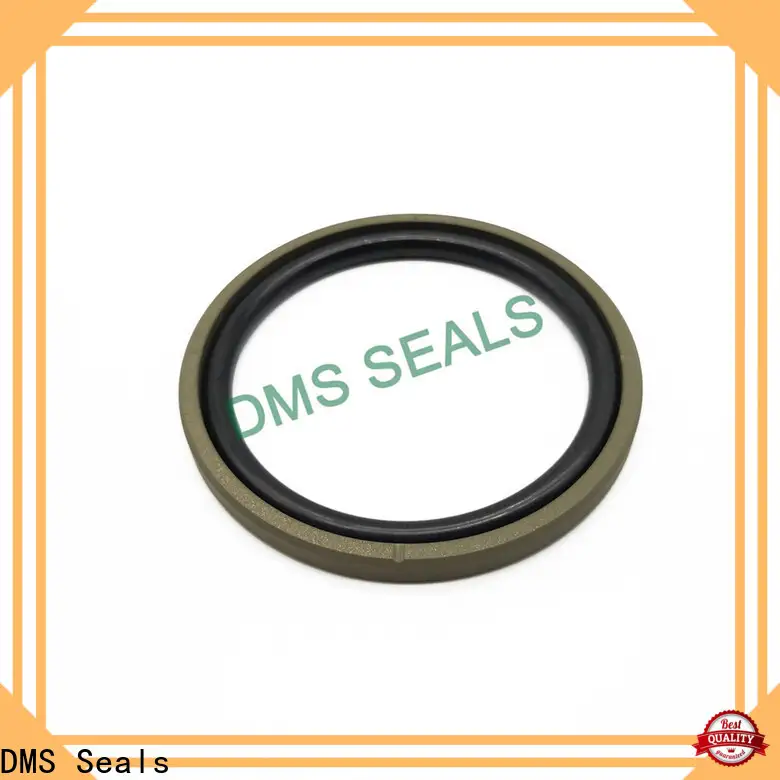

air piston seal supply for pneumatic equipment

Company Advantages
1. air piston seal is available in varying materials and colour options.
2. DMS Seals air piston seal provides features and functionality beyond value.
3. DMS Seals is designed to give strikingly intuitive user experiences.
4. DMS Seals is constructed of durable and eco-friendly materials.
5. air piston seal has different kinds of shapes.
6. The product does not contain harmful ingredients in fabrics. It has been tested to meet the fiber content of clothing compliant with the Textile Fiber Products Identification Act.
7. This product is not easy to get corroded. Its specially coated surface makes it not prone to oxidation in humid environments.
8. The product has soft close drawer glides. The adjustable glides with an anti-slam dampening system make the movement of opening and closing of the drawers almost silent.
9. This product features a robust and firm structure. All its components and even the hardware accessories are securely and tightly fastened.
10. People today can use this product to help them reduce their carbon footprint while reducing energy consumption.
11. This product will definitely let the public learn about a product, a company, or a brand. It will foster a high level of trust from customers.
12. Due to its energy efficiency, the product can greatly help in reducing CO2 emission and significantly contributes to environmental protection.
13. People will find that its color always stays uniform and have no streaks or spots, and they don't worry about the color fading.
14. This product keeps things unique. Even if it being a relatively simple box, the added color and graphics on it can differentiate the merchandise from competitors.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited has been a reliable manufacturer of . We are extensively accepted both in the domestic and international market. Dms Seals Technology Co.,limited is one of the distinguished suppliers in China. We hold national leading positions in designing and manufacturing. As a competitive and professional manufacturer of , Dms Seals Technology Co.,limited has been widely accepted in the domestic and international market. For years, Dms Seals Technology Co.,limited has never been stopping inventing and manufacturing quality air piston seal . We have evolved into a reliable manufacturer in the industry.
2. Dms Seals Technology Co.,limited closely relies on scientific and technological progress, introduces advanced equipment from overseas. Being easily maintained and durable is the remarkable characteristics of hydraulic valve seals . Based on the cornerstone of , DMS Seals's manufactured hydraulic piston seals has been paid more attention than before. Dms Seals Technology Co.,limited has always set high demand on quality from material selection to package. Dms Seals Technology Co.,limited has complete supporting equipment for rubber piston rings production.
3. We have aware of the importance of sustainability issues. We will make corresponding plans to set our actions to gear to achieve sustainable development, such as reducing waste and conserving energy resources. We aim to increase market share by 10 percent over the next three years through continuous innovation. We will narrow our focus on a specific type of product innovation through which we can result in greater market demand. We believe that strong communities and good business are inextricably linked. Hence, we have taken part in various charitable giving programs in recent years to contribute our efforts to society.
