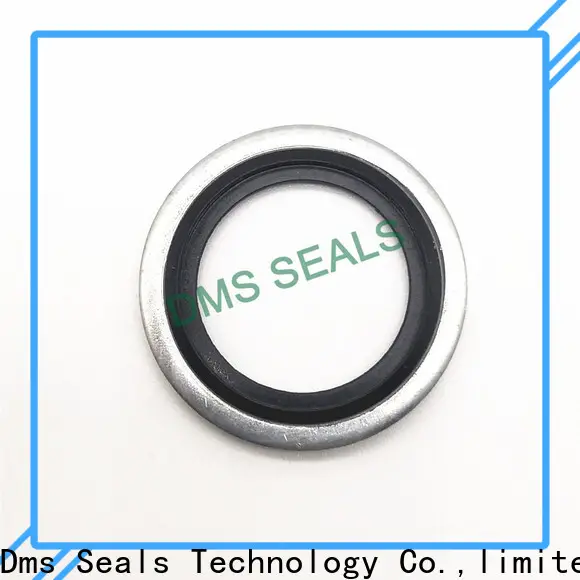

best bonded washer dimensions company for fast and automatic installation

Company Advantages
1. The production of DMS Seals bonded washer dimensions is strictly carried out according to refrigeration requirements. Every component is rigorously disinfected before it is assembled to the main structure.
2. The design of DMS Seals bonded washer dimensions is completed by our professionals who adopt ergonomics principles to perfectly meet the requirements of different scenarios.
3. The production of DMS Seals involves several requirements, such as the adoption of medical grade materials and coatings and surface treatments for increased wear resistance.
4. From the selection of raw materials of DMS Seals , any hazardous substance or element is eliminated to prevent pollution to the environment as well as any harm to the human body.
5. DMS Seals is developed and constantly improved regarding its technical and aesthetic performance, making it perfectly meet the requirements in the sanitary ware industry.
6. The product is breathable. The perforated design helps keep the humidity and temperature in an appropriate range while allowing free airflow.
7. The product has the desired durability. It can stand up to regular wearing and washing without fraying or thread loosing.
8. The product features a reasonable design. It has an appropriate shape that provides good feeling in user behavior and the environment.
9. The product has no seam puckering problem. During the sewing stage, the thread tension has been properly maintained to ensure smooth seaming.
10. The product gives the desired comfortable sensation for wearers. Also, it will not cause deformities in the toes through rubbing and pressure.
11. This product is compatible with various building styles, as well as optimizes the distribution and performance throughout the space.
12. This product is able to help develop good walking posture and relieve foot pain by offering the feet enough support and protection.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Dms Seals Technology Co.,limited mostly produces bonded washer dimensions with high quality and competitive prices. Dms Seals Technology Co.,limited is the best producer of bonded seals catalogue . Dms Seals Technology Co.,limited became a pioneer in the field of pamargan bonded seals by offering a variety of products. Dms Seals Technology Co.,limited is a leader in domestic molded seals industry and is developing towards the world.
2. DMS Seals has paid large investment in technical power, which has proven to be effective. Always keeping developing the bonded washer kit production is the core competitiveness of DMS Seals. Mastering the technology of producing bonded seal dimensions has created more benefits for DMS Seals. DMS Seals's own R&D department enables us to meet our customers' professional customization needs. Thanks to our excellent technology, bonded seal sizes is of high quality.
3. DMS Seals actively promotes the sustainable development of the self centering bonded seal market through constant investment in . Get price! In the future, DMS Seals will continue to adhere to the development of company and quality of the service. Get price! Adhering to integrity to work and customers can win the trust of customers and development of DMS Seals. Get price!
