Best hydraulic seals companies manufacturer for sale

Company Advantages
1. Strict production standards: the production process of DMS Seal Manufacturer hydraulic seals companies follows extremely stringent standards. These standards ensure that product performance reaches the predetermined range.
2. Manufactured using premium quality materials and sophisticated technology, DMS Seal Manufacturer stands for the excellent craftsmanship in the industry.
3. The design of DMS Seal Manufacturer hydraulic seals companies is exceptionally reasonable, combining both aesthetics and functionality.
4. Innovative design team: DMS Seal Manufacturer is elaborately designed by an innovative design team. This team has learned the industry know-how and are equipped with the latest design ideas in the industry.
5. The raw materials of DMS Seal Manufacturer are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards.
6. The quality of this product is guaranteed by the means of reliability testing and inspection systems.
7. The product has been quality tested before delivery to ensure that it is flawless and free from any defect.
8. In order to ensure its durability, the extra add quality testing is added to the production.
9. The product has never failed in the aspects of long-lasting performance and durability.
10. This product is ensured by our QC team who conducts a stringent quality check process.
11. The use of this product will lead to less consumption of energy, which automatically translates to savings on electricity bills.
12. The product requires a low number of workers to execute production tasks, which will help reduce labor costs and help manufacturers achieve a competitive advantage.
13. The use of this product will consume less energy to help people reduce electricity bills for the years to come.
14. Due to its excellent versatility, the product provides different application possibilities, such as applying in our daily supplies, medical tools, garment, etc.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

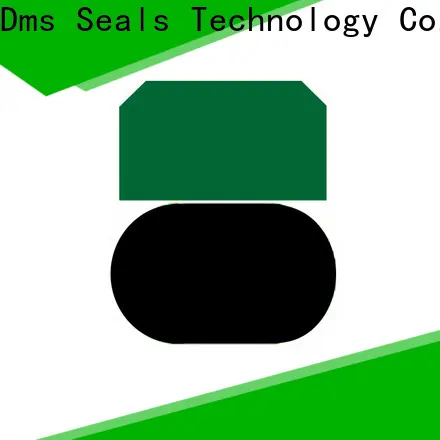

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Engaging in the field of hydraulic seals companies for years, Dms Seals Technology Co.,limited is a distinguished manufacturer and exporter in China. Dms Seals Technology Co.,limited is a large high-tech company specializing in the production of . Dms Seals Technology Co.,limited is an award-winning designer and manufacturer of . We have extensive experience after years of development.
2. Our talented engineers and craftsmen are committed to the quality of our products. With extensive resources, expertise, and unique manufacturing capabilities, they are capable of bring out the highest quality products. Our company has a senior management team. It is backed by our experienced and trained talents, who support our portfolio and empower our clients and colleagues. Over the years, we have got many prizes in the industry. For example, we have been renowned for our professionalism and good business practices. We have been awarded the title of "China Famous Exporter", which showcases that we are competent enough in the industry. We have state-of-the-art manufacturing facilities and advanced technological equipment. They allow the company to carry out production precisely and consistently on every piece.
3. DMS Seal Manufacturer has great ambitions for the development of the custom oil seals market. Get quote! Innovation plays an important role in Dms Seals Technology Co.,limited. Get quote! Although there are ups and downs, the unchanging is the pioneering spirit of Dms Seals Technology Co.,limited. Get quote! Customer satisfaction is the business goal of Dms Seals Technology Co.,limited. Get quote!
