Best mechanical seal material selection vendor for larger piston clearance

Company Advantages
1. A series of tests ensured the quality of DMS Seals . The joint force, tensile strength, fiber stiffness, and fiber rebound were tested.
2. The quality of DMS Seals is ensured. Quality control is carried out from the procurement of raw fibers to the final stages of textile production, such as dyes and dyeing.
3. DMS Seals meets the quality and safety requirements of our destination market, as well as all applicable international standards. It has passed a flammability-resistance test, a corrosion-resistance test, and other durability tests.
4. Our company has passed the ISO9001quality system certification, providing a more reliable guarantee for the quality of the product.
5. It has gone through stringent test based on certain quality parameters.
6. It has gained its good reputation for its strict quality assurance.
7. This product is tested on a set of norms prior to final delivery of the order.
8. This product has some referential value as it has a reasonable design. .
9. Dms Seals Technology Co.,limited has the world's most advanced technology and testing method.
10. Dms Seals Technology Co.,limited's domestic market appeal has gradually increased recent years.
11. There are professional team in DMS Seals with a relatively complete quality guarantee system.
12. Dms Seals Technology Co.,limited has great customer satisfaction and return rate.
13. DMS Seals set up a strict, well-coordinated and effective quality-guarantee system, with a view to fixing the quality of mechanical seal material selection .

1. Installation Recommendation

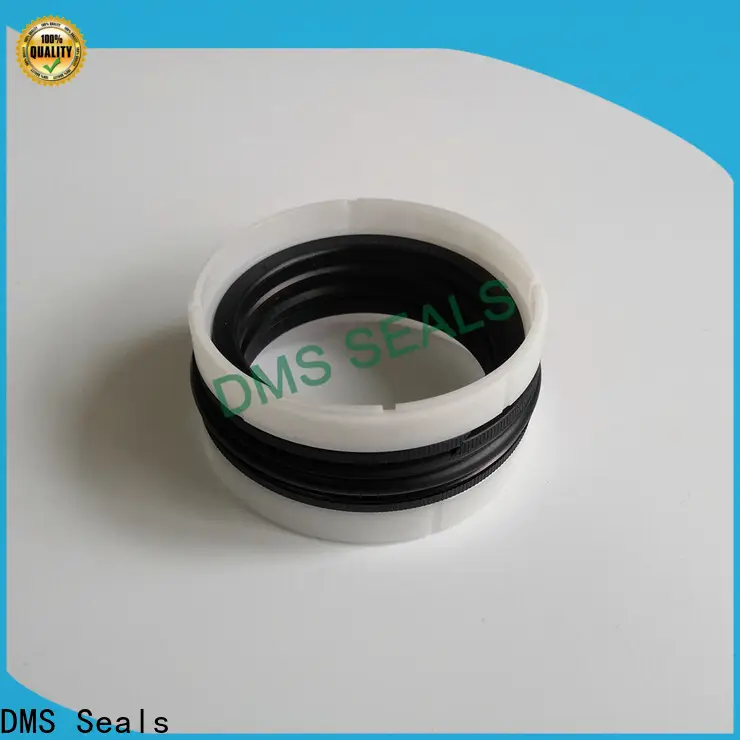

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. DMS Seals has laid a solid foundation in mechanical seal material selection industry. As a developing company, DMS Seals has attracted more and more customers since founded. Dms Seals Technology Co.,limited has preceded over other companies with its delicate bonded seal manufacturer . Dms Seals Technology Co.,limited now leads the development of hydraulic ram seals industry.
2. We have a well-trained customer service team. They are equipped with professional communicative skills and profound product knowledge, which enables them to provide full support services to all our product end-users and business partners, including pre-sale training and after-sale support services. Our company has hired professional designers. Focusing on evolving trends and requirements of the markets, they are able to capture the very best of the latest market trends and select the highest grade of materials to create quality products with exceptional value. Our company has achieved numerous honors awarded by the municipal. We are credited as the high-integrity enterprise, quality trustworthy organization, and the creditable unit keeping the promise. Our company has a flexible and diverse workforce with multi-skilled staff. Most of these employees can fill the positions of absent employees and work in any area that requires increased manpower. This allows us to maintain production efficiency under all circumstances. Our company has excellent management. They are able to create a positive and attractive work environment in which all teams can build strong relationships with each other and with customers.
3. The establishment of a good brand image needs the efforts of each DMS Seals employee. Call! DMS Seals believed that the development of company can not do without support of . Call! The guiding ideology of Dms Seals Technology Co.,limited is . Call! DMS Seals will unwaveringly pursue the vision of being the common seal manufacturers industry leader. Call! DMS Seals has been always insisting on independent innovation and believes which will continuously enhance its core competitiveness. Call!

Best mechanical seal material selection vendor for larger piston clearance

mechanical seal material selection

Type:
