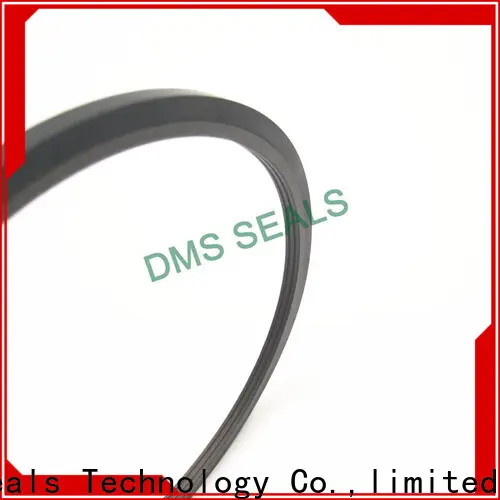

best mechanical seal ring glyd ring

Company Advantages
1. mechanical seal ring is a commercially viable and environmentally sound alternative.
2. DMS Seal Manufacturer is manufactured by our experts using advanced technology with superior grade materials.
3. According to the needs of customers, our professional team can also design mechanical seal ring accordingly.
4. DMS Seal Manufacturer is produced in a standard production environment.
5. High energy efficiency is the biggest selling points of this product. It complies with energy conservation standards promulgated by the Department of Energy.
6. This product has a high electric safety level. During the production, it is thoroughly inspected for its insulation housing, overload protection system, and reliable electric conductors.
7. The product is not easily affected by stains. Its surface is smooth enough to resist any kind of spills such as some acidic liquids like vinegar, red wine, and lemon juice.
8. The product features easy operation. Its operating parameters can be easily changed to achieve different functions and performance.
9. The sales of mechanical seal ring has been increasing for our considerate service and strict quality assurance.
10. Dms Seals Technology Co.,limited's products have won good appraise from our customers.
11. The reliability of mechanical seal ring is trusted by many clients.

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.



3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.



5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18*27*4.3 SPN20*29*4.3 SPN22*31*4.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27*36*4.3 SPN31.5*40.5*4.3 SPN47*60*7.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53*66*7.3 SPN60*73*7.3 SPN65*78*7.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70*83*7.3 SPN75*88*7.3 SPN80*93*7.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90*103.4*7.3 SPN100*113.4*7.3 SPN110*123.4*7.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120*133.4*7.3 SPN130*143.4*7.3 SPN140*153.4*7.3

Company Features
1. A solid foundation in mechanical seal ring field has been laid in Dms Seals Technology Co.,limited. DMS Seal Manufacturer has become a popular exporter at home and abroad. The notability of DMS Seal Manufacturer has been rapidly increasing.
2. Our professional equipment allows us to fabricate such . Whenever there is any problems for our window seal manufacturers , you can feel free to ask our professional technician for help. The cutting-edge technology adopted in industrial mechanical seals helps us win more and more customers. Our production capacity occupies steadily in the forefront of the inflatable seal manufacturer industry.
3. DMS Seal Manufacturer always regards quality and service as the key factors for a company's long-term development. Check it! DMS Seal Manufacturer has its great goal of influencing the global market of manufacturing mechanical seal buyer . Check it! Through the accumulation of enterprise culture with years, DMS Seal Manufacturer is stronger inside to enhance the service. Check it! DMS Seal Manufacturer will constantly develop its culture the strengthen the cohesion of the staff. Check it!

best mechanical seal ring glyd ring

mechanical seal ring

Type:
