best mechanical shaft seal suppliers supplier

Company Advantages
1. With its appealing design, DMS Seal Manufacturer will attract more attention than before.
2. DMS Seal Manufacturer mechanical shaft seal suppliers is rich in style to meet different design needs of customers.
3. The production of DMS Seal Manufacturer mechanical shaft seal suppliers uses well-selected materials to meet different needs.
4. DMS Seal Manufacturer is developed by team of professionals by using the high grade material and modern technology as per with market prevalent norms.
5. This product adds a sense of style and fashion to the bedroom design, making itself a versatile product for a wide range of occasions.
6. The product is safe in use. It is built with the proper safety devices in place, including an emergency stop button and curtain guards.
7. It is distinguished by the metal hardness. It has passed the tension test that proves it's not susceptible to deform or break.
8. After long exposure to sunlight or washing it a certain number of times, it won't fade and it won't start moldy.
9. This product is able to boost the aesthetics of space. It can help create a beautiful environment to live in or work in.
10. Personally speaking, it makes the individual look charm and vigorous and helps people increasingly focus on the desire for beauty.
11. Due to its naturally beautiful patterns and lines, this product looks great in any space and matches well with other furniture.
12. This product can be leveraged in the best possible way to fit the space without wasting space or limiting the original kitchen design.
13. This product with tightly sewn seams is not likely to fall apart during normal use. People can be assured that this product will not suddenly burst at the seams.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter                         dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

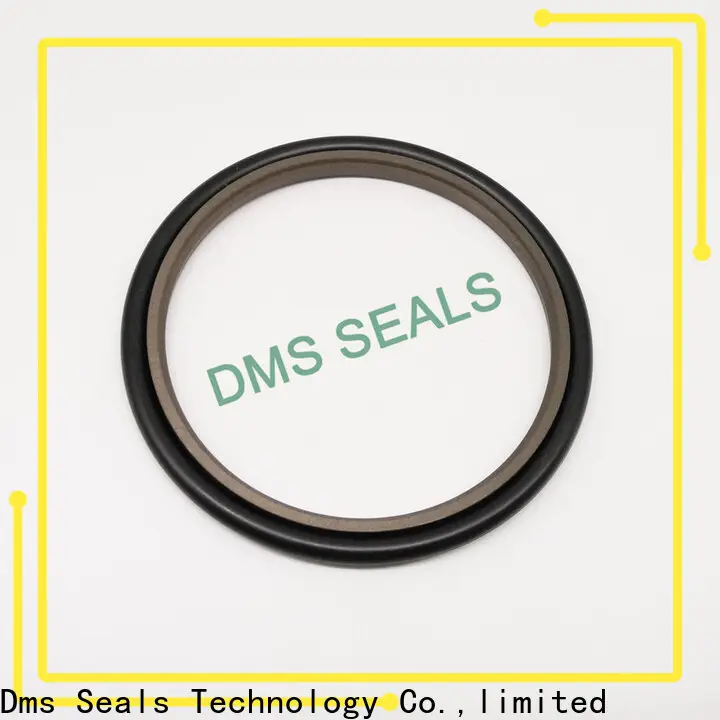

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation.

Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
dN h9	D1 H9	L1+0.2
4 5 6	8.9 9.9 10.9	2.2 2.2 2.2	GSJ4*8.9*2.2 GSJ5*9.9*2.2 GSJ6*10.9*2.2	5.28*1.78 6.75*1.78 7.65*1.78
8 8 10	12.9 15.3 14.9	2.2 3.2 2.2	GSJ8*12.9*2.2 GSJ8*15.3*3.2 GSJ10*14.9*2.2	9.25*1.78 10.77*2.62 11.8*1.78
10 12 12	17.3 16.9 19.3	3.2 2.2 3.2	GSJ10*17.3*3.2 GSJ12*16.9*2.2 GSJ12*19.3*3.2	12.37*2.62 13.3*1.78 13.94*2.62
14 14 15	18.9 21.3 19.9	2.2 3.2 2.2	GSJ14*18.9*2.2 GSJ14*21.3*3.2 GSJ15*19.9*2.2	15.6*1.78 15.54*2.62 16.67*1.78
15 16 16	22.3 20.9 23.3	3.2 2.2 3.2	GSJ15*22.3*3.2 GSJ16*20.9*2.2 GSJ16*23.3*3.2	17.12*2.62 17.17*1.78 18.72*2.62
18 18 19	22.9 25.3 29.7	2.2 3.2 4.2	GSJ18*22.9*2.2 GSJ18*25.3*3.2 GSJ19*29.7*4.2	18.77*1.78 20.29*2.62 23.39*3.53
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2	21.89*2.62 23.39*3.53 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a worldwide famous company who is specialized in producing mechanical shaft seal suppliers . As a high-tech enterprise, Dms Seals Technology Co.,limited mainly focuses on R&D and manufacture of bottle seal manufacturers. Having been through all those difficulties, DMS Seal Manufacturer is powerful enough to solve problems for customers. Dms Seals Technology Co.,limited is a professional manufacturer of hydraulic seals distributors research and development innovation. Dms Seals Technology Co.,limited is so good at supplying prime piston rings by size for customers.
2. Dms Seals Technology Co.,limited strictly adopts high technology to ensure the quality of lead seals suppliers . The company's products are widely used in many applications. The products are also very popular in overseas markets besides the domestic market. It is estimated that sales volume in overseas will continue to increase. Dms Seals Technology Co.,limited is famous for its technical accomplishments.
3. Every worker is making Dms Seals Technology Co.,limited a powerful competitor on the market. Inquire online! Dms Seals Technology Co.,limited aims be a stunning global brand. Inquire online! Dms Seals Technology Co.,limited will always be determined to forge ahead and persist in research and innovation. Inquire online! Dms Seals Technology Co.,limited is committed to doing domestic door seal manufacturers into a first brand. Inquire online!
