best O Ring Manufacturers supplier to high and low speed

Company Advantages
1. The offered DMS Seal Manufacturer O Ring Manufacturers is designed under the guidance of highly skilled designers. We can support OEM and ODM
2. Focusing on customer needs and enhancing customer experience have already constituted a breakthrough in the transformation of Dms Seals Technology Co.,limited. The high pressure seals have strong wear resistance to hard conditions
3. O Ring Manufacturers is widely applied in the field for its properties as push rod seal. DMS o-ring seal has advanced machines and equipment for its production
4. O Ring Manufacturers is push rod seal, and is a guide for rod seal catalogue industry. To reduce costs with high-efficiency work is the DMS's purpose

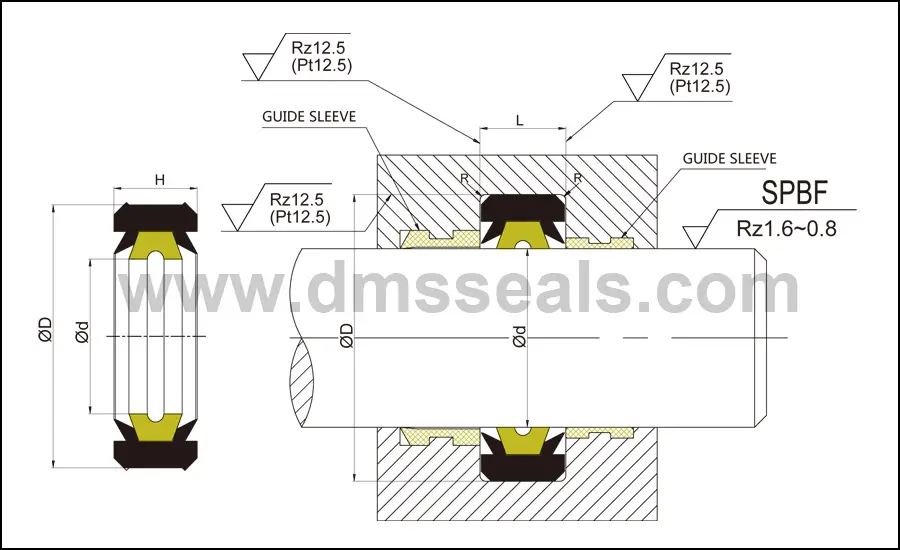

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15

Company Features
1. We are backed by our professional R&D team. Equipped with years of expertise in the industry, they are able to quickly develop new products according to the newest market trend.
2. Adhere to the spirit of customer first, DMS Seal Manufacturer will be encouraged to ensure service quality. Ask!
