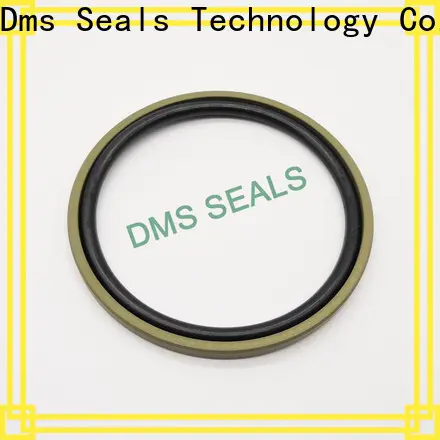

bronze filled rubber seal prijs o ring

Company Advantages
1. DMS Seal Manufacturer rubber seal prijs has a trendy design as the designers would conduct various market surveys to learn the changing industry trends and client demands before designing.
2. DMS Seal Manufacturer rubber seal prijs is available in an innovative and attractive design.
3. DMS Seal Manufacturer is manufactured using advanced machines and tools in tandem with international quality standards.
4. DMS Seal Manufacturer rubber seal prijs is manufactured by our workers with sophisticated skills in a short production period.
5. The production process of DMS Seal Manufacturer complies with international green specifications.
6. Adhering to the principle of 'quality first', this product is manufactured according to the industry quality requirements.
7. Our product has special features like high performance and long service life.
8. The product is manufactured with high precision to meet the set industry quality standards.
9. A strict quality check system has been built to ensure its quality.
10. The product operates silently with no annoying flickering noises. This means that people can stay in a quiet environment.
11. This product is often used as the basic and essential materials in our daily life and it is vital for economic, social and technological development.
12. People all agree that this product is a good helper for their devices. They don't have to worry about their devices will suddenly shut down.
13. The product will enhance the building's performance and reduce maintenance and replacement costs for people, thereby raising the overall value of the building.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. It is our exquisite rubber seal prijs that boosts the reputation of DMS Seal Manufacturer. Under strict management system, Dms Seals Technology Co.,limited has grown to be a strong and powerful enterprise in the industry of manufacture of seals . Dms Seals Technology Co.,limited is very professional in manufacturing felt seal manufacturers , which is reliable among customers. As a front-runner in the industry of wheel seal manufacturers , the future of Dms Seals Technology Co.,limited is promising.
2. Our team is a trained product and competency expert. They coordinate our vast resources to ensure that our clients' projects are completed on time from research and development to final delivery. Our products are exported via a worldwide distributor network. Now we have expanded and diversified our market focus from the Asian region to more places worldwide, which include North America, South America, Asia Pacific region, ASEAN region, Africa, and EU. Our factory is close to both suppliers and customers. This favorable condition helps us minimize transportation costs, both for raw materials coming into the plant and for finished goods going out.
3. DMS Seal Manufacturer focuses on continuous technological innovation to improve products and services. Inquire online! Judging the hour and size up the situation is an essential factor for DMS Seal Manufacturer to keep improving. Inquire online! Dms Seals Technology Co.,limited is committed to trust, honesty and responsibility, whether internal or external. Inquire online!
