bronze hydraulic rod seals with nbr or pu to high and low speed

Company Advantages
1. Fine materials: DMS Seal Manufacturer hydraulic rod seals is manufactured based on high quality raw materials which are supplied by our reliable partners. These partners are all well-selected by us.
2. Conforming to the design standard, DMS Seal Manufacturer rod seal catalogue has an appealing appearance.
3. DMS Seal Manufacturer hydraulic rod seals captures the attention of customers with its functional and aesthetic design.
4. The production of DMS Seal Manufacturer rod seal catalogue adopts the highest standards in the industry.
5. It shows durability and satisfactory wear performance thanks to its fiber sort and properties, yarn fabric and construction, and any chemical and/or mechanical treatment connected to it.
6. It has satisfactory durability and serviceability. The fabric and weaving techniques are chosen based on the particular end use of this product.
7. The product features the desired safety and reliability. It has the function of protection from overvoltage, overcurrent, and overheating and will is not likely to cause suddenly stoppage.
8. With the spreading word-of-mouth, a greater market application prospect the product is well in sight.
9. This product has been exported to many countries thanks to the wide marketing network.
10. It is considered as a hot product as it has huge economic benefits.
11. With so many advantages, the product is widely praised among customers and widely applied in the global market now.
12. With the further development, it's social recognition, popularity and reputation will continue to increase.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

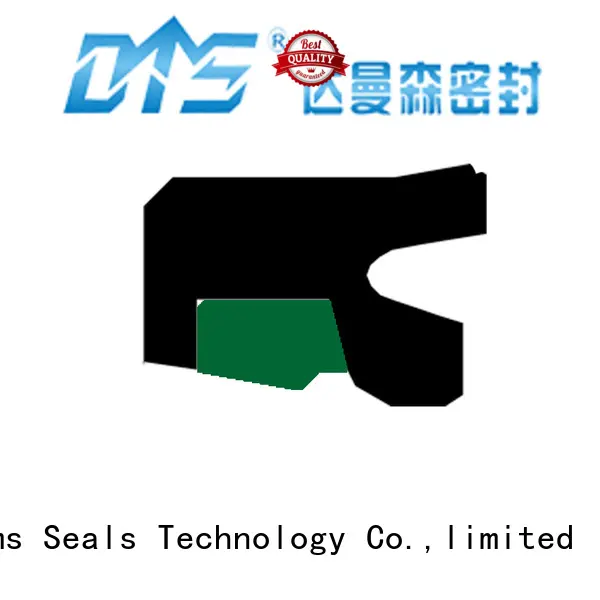

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13
