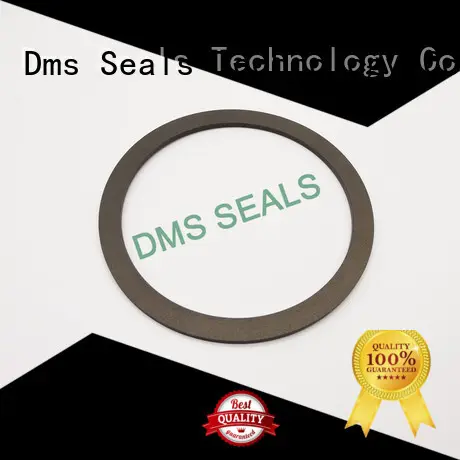

BRT Bronze filled PTFE Back-Up Ring1

Company Advantages
1. DMS Seal Manufacturer vacuum gasket is strictly assessed after production. Many factors include part tolerances, size limitations, materials properties, mechanical analysis, and function realization have been analyzed.
2. DMS Seal Manufacturer vacuum gasket is professionally designed considering the following factors: the functionality of the control system, engineering forces, life cycle, utility, and manufacturability.
3. DMS Seal Manufacturer vacuum gasket is manufactured adopting advanced machines. These machines mainly include punching machine, bending machine, stamping machine, milling machine, cutting machine, etc.
4. DMS Seal Manufacturer rubber and gasket has been tested according to the general standards. It is tested in terms of functionality, strength, stiffness, wears, and corrosion.
5. The creation of DMS Seal Manufacturer rubber and gasket involves some advanced technologies. They include mechanical systems technology, automatic control technology, sensing technology, and servo-drive technology.
6. The product is not affected by the humid environment. All of its electric components are finely sealed inside the housing, which makes them not be damaged by the external conditions.
7. The product has soft close drawer glides. The adjustable glides with an anti-slam dampening system make the movement of opening and closing of the drawers almost silent.
8. The product has the advantage of good mechanical performance. It is made of materials that feature excellent mechanical properties.
9. The product has a potential prospect and keeps track with the market development.
10. It has obtained fame and reputation in the market.
11. The product is highly appreciated and consistently meets the needs of the customers.
12. The product is highly marketable in world markets and has high commercial value.

1. Application and properties

BRT are used to prevent the seal from being squeezed, and improve the pressure resistance of the seal. The standard cut shape is beveled. If there is no problem with the installation, a non-cut ring can also be used.

2. Standard materials

Bronze filled PTFE

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +260℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

4. Installation Dimensions

d	D	T	Order No.
40 45 45	50 55 60	3 3 3	BRT40*50*3 BRT45*55*3 BRT45*60*3
50 50 50	60 63 65	3 3 3	BRT50*60*3 BRT50*63*3 BRT50*65*3
55 55 55	65 68 70	3 3 3	BRT55*65*3 BRT55*68*3 BRT55*70*3
60 60 60	70 73 75	3 3 3	BRT60*70*3 BRT60*73*3 BRT60*75*3
60 65 65	80 75 78	3 3 3	BRT60*80*3 BRT65*75*3 BRT65*78*3
65 65 70	80 85 80	3 3 3	BRT65*80*3 BRT65*85*3 BRT70*80*3
70 70 70	83 85 90	3 3 3	BRT70*83*3 BRT70*85*3 BRT70*90*3
75 75 75	85 88 90	3 3 3	BRT75*85*3 BRT75*88*3 BRT75*90*3
75 80 80	95 90 93	3 3 3	BRT75*95*3 BRT80*90*3 BRT80*93*3
80 80 85	95 100 100	3 3 3	BRT80*95*3 BRT80*100*3 BRT85*100*3
85 90 90	105 105 110	3 3 3	BRT85*105*3 BRT90*105*3 BRT90*110*3
95 95 100	110 115 115	3 3 3	BRT95*110*3 BRT95*115*3 BRT100*115*3
100 105 105	120 120 125	3 3 3	BRT100*120*3 BRT105*120*3 BRT105*125*3
110 110 115	125 130 130	3 3 3	BRT110*125*3 BRT110*130*3 BRT115*130*3
115 120 120	135 135 140	3 3 3	BRT115*135*3 BRT120*135*3 BRT120*140*3
125 125 130	140 145 145	3 3 3	BRT125*140*3 BRT125*145*3 BRT130*145*3
130 140 150	150 160 170	3 3 3	BRT130*150*3 BRT140*160*3 BRT150*170*3
160 170 180	180 190 200	3 3 3	BRT160*180*3 BRT170*190*3 BRT180*200*3
