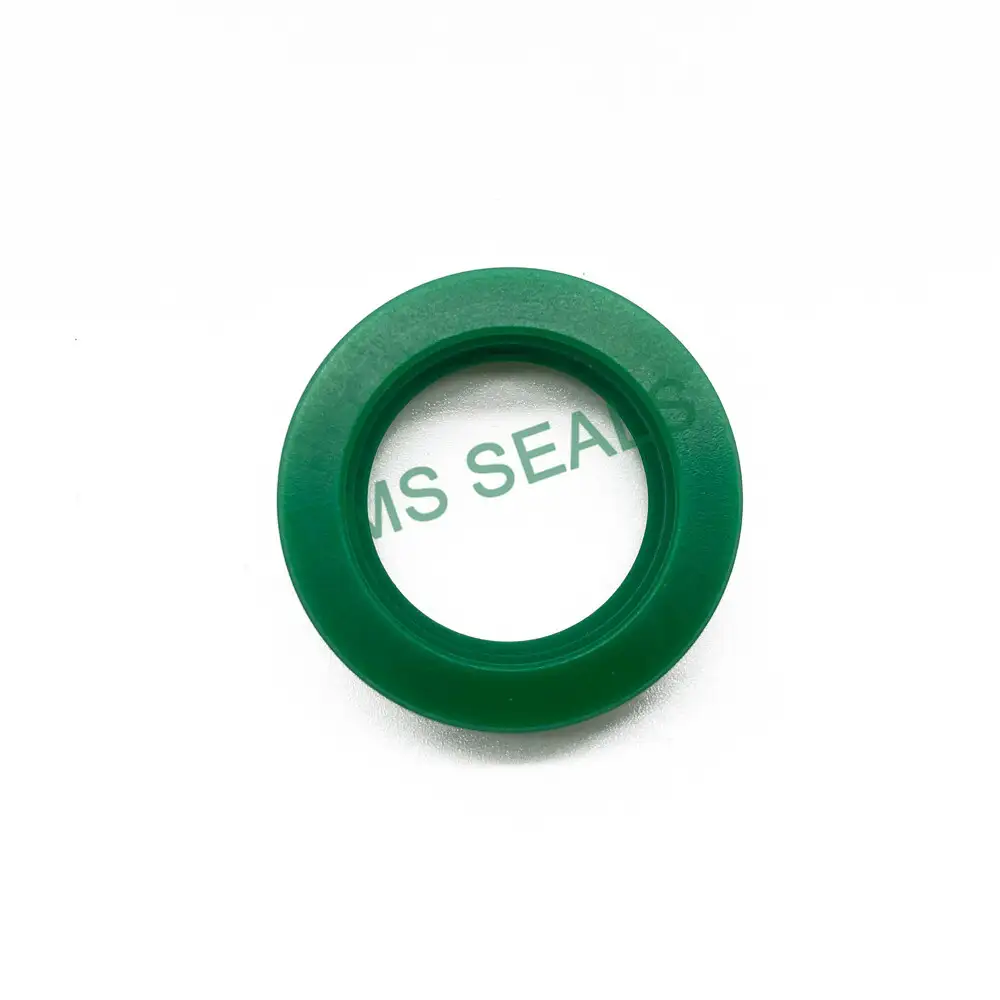

BS Type Piston Seal Vu Type Sealing Gasket for Shaft
5.0
Diameter Range:
6-450mm
Pressure Range:
≤35MPA
Temperature Range:
-35~+80℃
Speed:
≤0.5m/s
Medium:
Hydraulic Oil
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
bg
BS type piston rod seal is a lip seal with two sealing lips and a tight fit at the outer diameter. Due to the extra lubricant between the two lips, dry friction and wear are greatly prevented. Improve its sealing performance.Adequate lubrication due to the pressure medium of the sealing lip quality inspection，Improved sealing performance under zero pressure.
BS is primarily designed to seal piston rods and plungers in heavy duty applications in mobile and stationary hydraulic systems.It is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside.
| Advantage |
1.Good wear resistance 2.Little denaturation after compression 3.Impact and extrusion resistance 4.Adapt to harsh working conditions 5. Easy to install |
Product Parameters
bg
| NO. | SIZE | NO. | SIZE | NO. | SIZE | NO. | SIZE |
| 1 | BS6*12*5 | 80 | BS32*42*10 | 159 | BS60*80*12 | 238 | BS100*130*15 |
| 2 | BS8*14*6 | 81 | BS32*45*10 | 160 | BS63*71*8 | 239 | BS105*113*11.5 |
| 3 | BS8*16*5.7 | 82 | BS32*47*10 | 161 | BS63*73*6 | 240 | BS105*120*9 |
| 4 | BS8*16*6 | 83 | BS34*45*6 | 162 | BS63*73*11.8 | 241 | BS105*120*10 |
| 5 | BS9*16*5.7 | 84 | BS35*43*4.7 | 163 | BS63*73*12 | 242 | BS105*125*12 |
| 6 | BS10*16*4.5 | 85 | BS35*43*5.7 | 164 | BS63*73*13 | 243 | BS105*125*15 |
| 7 | BS10*17*5.7 | 86 | BS35*43*7* | 165 | BS63*75*11.4 | 244 | BS105*125*16 |
| 8 | BS10*18*5.7 | 87 | BS35*45*6 | 166 | BS63*78*10 | 245 | BS107*115*11.5 |
| 9 | BS10*18*6 | 88 | BS35*45*7 | 167 | BS63*78*11.4 | 246 | BS110*118*10.5 |
| 10 | BS10*18*8 | 89 | BS35*45*7.3 | 168 | BS63.5*76.2*9.53 | 247 | BS110*125*9 |
| 11 | BS10*20*5 | 90 | BS35*45*7.5 | 169 | BS64*72*9.1 | 248 | BS110*125*9.6 |
| 12 | BS10*20*6 | 91 | BS35*45*10 | 170 | BS65*73*11.5 | 249 | BS110*125*12* |
| 13 | BS11.2*19.2*5 | 92 | BS35*50*10 | 171 | BS65*75*6 | 250 | BS110*125*14.5 |
| 14 | BS12*18*6 | 93 | BS36*43*7.3 | 172 | BS65*75*7 | 251 | BS110*130*10 |
| 15 | BS12*20*5 | 94 | BS36*46*7.3 | 173 | BS65*75*12 | 252 | BS110*130*12 |
| 16 | BS12*20*6 | 95 | BS36*51*10 | 174 | BS65*78*10 | 253 | BS110*130*14.5 |
| 17 | BS12.5*22.5*8 | 96 | BS37*47*7.3 | 175 | BS65*80*9 | 254 | BS115*130*9 |
| 18 | BS12.7*19.05*4.5 | 97 | BS37*47*10 | 176 | BS65*85*11.4 | 255 | BS115*130*10 |
| 19 | BS14*20*5.7 | 98 | BS38*48*6 | 177 | BS67*77*6 | 256 | BS115*130*12 |
| 20 | BS14*22*5 | 99 | BS38.1*47.63*6.35 | 178 | BS68*78*12 | 257 | BS115*135*12 |
| 21 | BS14*22*5.7 | 100 | BS40*48*8 | 179 | BS70*78*8 | 258 | BS115*135*16 |
| 22 | BS14*24*7.3 | 101 | BS40*50*6 | 180 | BS70*80*6 | 259 | BS118*126*13 |
| 23 | BS14*24*8 | 102 | BS40*50*7 | 181 | BS70*80*7 | 260 | BS120*130*11.4 |
| 24 | BS15*25*8 | 103 | BS40*50*7.3 | 182 | BS70*80*10 | 261 | BS120*130*14 |
| 25 | BS16*22*5 | 104 | BS40*50*8* | 183 | BS70*80*11.5 | 262 | BS120*130*17 |
| 26 | BS16*24*5 | 105 | BS40*50*10 | 184 | BS70*80*12 | 263 | BS120*135*9 |
| 27 | BS18*24*5 | 106 | BS40*52*8 | 185 | BS70*83*10 | 264 | BS120*135*14.5 |
| 28 | BS18*24*8 | 107 | BS40*55*10* | 186 | BS70*85*9 | 265 | BS120*140*12 |
| 29 | BS18*25*5 | 108 | BS40*55*11.4 | 187 | BS70*85*10 | 266 | BS120*140*15 |
| 30 | BS18*25*8 | 109 | BS43*53*7.3 | 188 | BS70*85*11.4 | 267 | BS125*133*11.5 |
| 31 | BS18*26*5 | 110 | BS45*53*5.6 | 189 | BS70*85*12.5 | 268 | BS125*135*9 |
| 32 | BS18*28*8 | 111 | BS45*55*6 | 190 | BS75*85*6 | 269 | BS125*135*11.4 |
| 33 | BS19*28*7 | 112 | BS45*55*7 | 191 | BS75*85*7 | 270 | BS125*145*12 |
| 34 | BS20*26*5 | 113 | BS45*55*7.3 | 192 | BS75*85*11.5 | 271 | BS125*145*15 |
| 35 | BS20*28*5 | 114 | BS45*55*8 | 193 | BS75*88*10 | 272 | BS130*145*9 |
| 36 | BS20*28*5.7 | 115 | BS45*55*10 | 194 | BS75*90*9 | 273 | BS130*145*12 |
| 37 | BS20*28*6 | 116 | BS45*56*7 | 195 | BS75*90*9.5 | 274 | BS130*150*15 |
| 38 | BS20*28.3*5 | 117 | BS45*57*9.5 | 196 | BS75*90*10 | 275 | BS135*143*10.5 |
| 39 | BS20*30*6 | 118 | BS45*60*9 | 197 | BS75*90*12 | 276 | BS140*155*9.6 |
| 40 | BS20*30*7.3 | 119 | BS45*60*10 | 198 | BS75*95*12 | 277 | BS140*160*12 |
| 41 | BS20*30*8 | 120 | BS45*60*11.4 | 199 | BS78*86*11.5 | 278 | BS140*160*14.5 |
| 42 | BS22*28*6 | 121 | BS46*56*10 | 200 | BS80*90*6 | 279 | BS145*155*11.4 |
| 43 | BS22*30*5 | 122 | BS48*56*11.5 | 201 | BS80*90*8 | 280 | BS150*160*9 |
| 44 | BS22*30*5.7 | 123 | BS48*58*6 | 202 | BS80*90*12 | 281 | BS150*160*11.4 |
| 45 | BS22*32*7.3 | 124 | BS50*58*8 | 203 | BS80*93*10 | 282 | BS150*165*9 |
| 46 | BS22*32*8* | 125 | BS50*58*10 | 204 | BS80*95*9 | 283 | BS150*170*15 |
| 47 | BS22.4*30*5 | 126 | BS50*60*6 | 205 | BS80*95*10 | 284 | BS160*170*10.5 |
| 48 | BS25*31*8 | 127 | BS50*60*7 | 206 | BS80*95*11.4 | 285 | BS160*180*12 |
| 49 | BS25*32*7 | 128 | BS50*60*7.3 | 207 | BS80*95*12 | 286 | BS160*180*18.5 |
| 50 | BS25*33*5 | 129 | BS50*60*10 | 208 | BS80*100*12 | 287 | BS160*185*18.2 |
| 51 | BS25*33*6 | 130 | BS50*63*6 | 209 | BS85*93*11.5 | 288 | BS167*175*11.5 |
| 52 | BS25*35*6 | 131 | BS50*63*8 | 210 | BS85*95*9 | 289 | BS170*200*18 |
| 53 | BS25*35*7 | 132 | BS50*65*9 | 211 | BS85*100*9 | 290 | BS171*179*13 |
| 54 | BS25*35*7.3 | 133 | BS50*65*10 | 212 | BS85*100*10 | 291 | BS175*185*11.4 |
| 55 | BS25*35*8 | 134 | BS50*65*11.4 | 213 | BS85*100*12 | 292 | BS176*186*12 |
| 56 | BS25*45*10 | 135 | BS52*62*10 | 214 | BS85*105*12 | 293 | BS177.7*198*9.73 |
| 57 | BS25.4*31.75*6.3 | 136 | BS53*63*6 | 215 | BS90*98*11.5 | 294 | BS180*188*11.5 |
| 58 | BS26*36*10 | 137 | BS55*63*10 | 216 | BS90*100*8 | 295 | BS180*190*9 |
| 59 | BS28*34*8 | 138 | BS55*65*6 | 217 | BS90*100*10.5 | 296 | BS180*190*11.4 |
| 60 | BS28*35.5*5 | 139 | BS55*65*8 | 218 | BS90*100*12 | 297 | BS180*197*9.5 |
| 61 | BS28*35.5*5.7 | 140 | BS55*65*10 | 219 | BS90*105*9 | 298 | BS180*200*12 |
| 62 | BS28*36*5.7 | 141 | BS55*65*11.4 | 220 | BS90*105*10 | 299 | BS180*200*15 |
| 63 | BS28*36*6 | 142 | BS55*65*12 | 221 | BS90*105*11.4 | 300 | BS190*210*12 |
| 64 | BS28*36*7 | 143 | BS55*67*10 | 222 | BS92*107*11.4 | 301 | BS190*210*16 |
| 65 | BS28*36*10 | 144 | BS55*68*10 | 223 | BS95*105*11.4 | 302 | BS193*201*11.5 |
| 66 | BS28*38*7.3 | 145 | BS55*70*11.4 | 224 | BS95*110*9 | 303 | BS200*211*12 |
| 67 | BS28*40*8 | 146 | BS55*70*12 | 225 | BS95*110*10 | 304 | BS200*220*12 |
| 68 | BS28*43*10 | 147 | BS56*71*11.4 | 226 | BS95*115*12 | 305 | BS200*225*18.2 |
| 69 | BS30*37*6 | 148 | BS60*68*13 | 227 | BS97*105*13 | 306 | BS209.6*226.8*9.6 |
| 70 | BS30*38*5.7 | 149 | BS60*70*6 | 228 | BS100*108*12 | 307 | BS210*230*12 |
| 71 | BS30*38*6 | 150 | BS60*70*7.5 | 229 | BS100*110*9 | 308 | BS210*235*18 |
| 72 | BS30*40*6 | 151 | BS60*70*10 | 230 | BS100*110*10 | 309 | BS210*240*18 |
| 73 | BS30*40*7 | 152 | BS60*71*7 | 231 | BS100*110*11.4 | 310 | BS220*245*16 |
| 74 | BS30*40*10 | 153 | BS60*73*10 | 232 | BS100*115*8 | 311 | BS228.6*245.6*9 |
| 75 | BS30*45*10 | 154 | BS60*75*9 | 233 | BS100*115*9 | 312 | BS230*250*17 |
| 76 | BS31.75*41.28*6.35 | 155 | BS60*75*10 | 234 | BS100*115*10 | 313 | BS266.7*283.8*9.6 |
| 77 | BS32*42*6 | 156 | BS60*75*11.4 | 235 | BS100*115*12 | 314 | BS280*310*18 |
| 78 | BS32*42*7 | 157 | BS60*75*12 | 236 | BS100*120*12 | 315 | BS300*330*18 |
| 79 | BS32*42*7.3 | 158 | BS60*75*13 | 237 | BS100*120*14.5 | 316 | BS450*474*24 |
