Combination Seal Ddma in-Line Seal for Various Liquid Applications
1. Installation Recommendation
2. Application and properties
Suitable for seals of pistons and plungers, tandem seals for a variety of liquid applications are internal seals. Before installation, the sealing lip is protruded outwards, and the cylinder liner is pressed tightly after installation to provide elasticity for the wear ring, excellent sealing results can be achieved even in the absence of pressure. It can separate the liquid on both sides of the sealing ring, so it is also suitable for the sealing of the oil chamber, and the invasion of other liquids can be prevented. High wear resistance, low friction, no crawling phenomenon.
3. Standard materials
Sealing ring: filled PTFE
Elastomer: NBR / PU
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
40 - 1600mm | 0 - 25MPa | -30℃ +100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
5. Installation Dimensions
D H8 | d h9 | H | L+0.2 | e | Order No. |
40 45 50 | 30 35 40 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA40*30*16 DDMA45*35*16 DDMA50*40*16 |
56 63 65 | 46 53 55 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA56*46*16 DDMA63*53*16 DDMA65*55*16 |
70 75 80 | 60 65 70 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA70*60*16 DDMA75*65*16 DDMA80*70*16 |
85 90 95 | 75 80 85 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA85*75*16 DDMA90*80*16 DDMA95*85*16 |
100 105 115 | 90 95 105 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA100*90*16 DDMA105*95*16 DDMA115*105*16 |
120 125 130 | 110 113 118 | 15 15 15 | 16 16 16 | 7 10 10 | DDMA120*110*16 DDMA125*113*16 DDMA130*118*16 |
135 140 145 | 123 128 133 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA135*123*16 DDMA140*128*16 DDMA145*133*16 |
150 155 160 | 138 143 148 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA150*138*16 DDMA155*143*16 DDMA160*148*16 |
170 180 190 | 158 168 178 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA170*158*16 DDMA180*168*16 DDMA190*178*16 |
200 210 220 | 188 198 208 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA200*188*16 DDMA210*198*16 DDMA220*208*16 |
225 235 240 | 213 223 228 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA225*213*16 DDMA235*223*16 DDMA240*228*16 |
250 265 275 | 238 253 263 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA250*238*16 DDMA265*253*16 DDMA275*263*16 |
280 290 300 | 268 278 288 | 15 15 15 | 16 16 16 | 10 10 15 | DDMA280*268*16 DDMA290*278*16 DDMA300*288*16 |
D H8 | d h9 | H | L+0.2 | e | Order No. |
310 320 340 | 296 306 326 | 15 15 15 | 16 16 16 | 15 15 15 | DDMA310*296*16 DDMA320*306*16 DDMA340*326*16 |
350 360 380 | 336 346 366 | 15 15 15 | 16 16 16 | 15 15 15 | DDMA350*336*16 DDMA360*346*16 DDMA380*366*16 |
400 420 425 | 384 404 409 | 15 15 15 | 16 16 16 | 15 15 15 | DDMA400*384*16 DDMA420*404*16 DDMA425*409*16 |
450 480 500 | 434 464 484 | 15 15 15 | 16 16 16 | 15 15 15 | DDMA450*434*16 DDMA480*464*16 DDMA500*484*16 |
560 600 630 | 544 584 614 | 15 15 15 | 16 16 16 | 15 15 15 | DDMA560*544*16 DDMA600*584*16 DDMA630*614*16 |

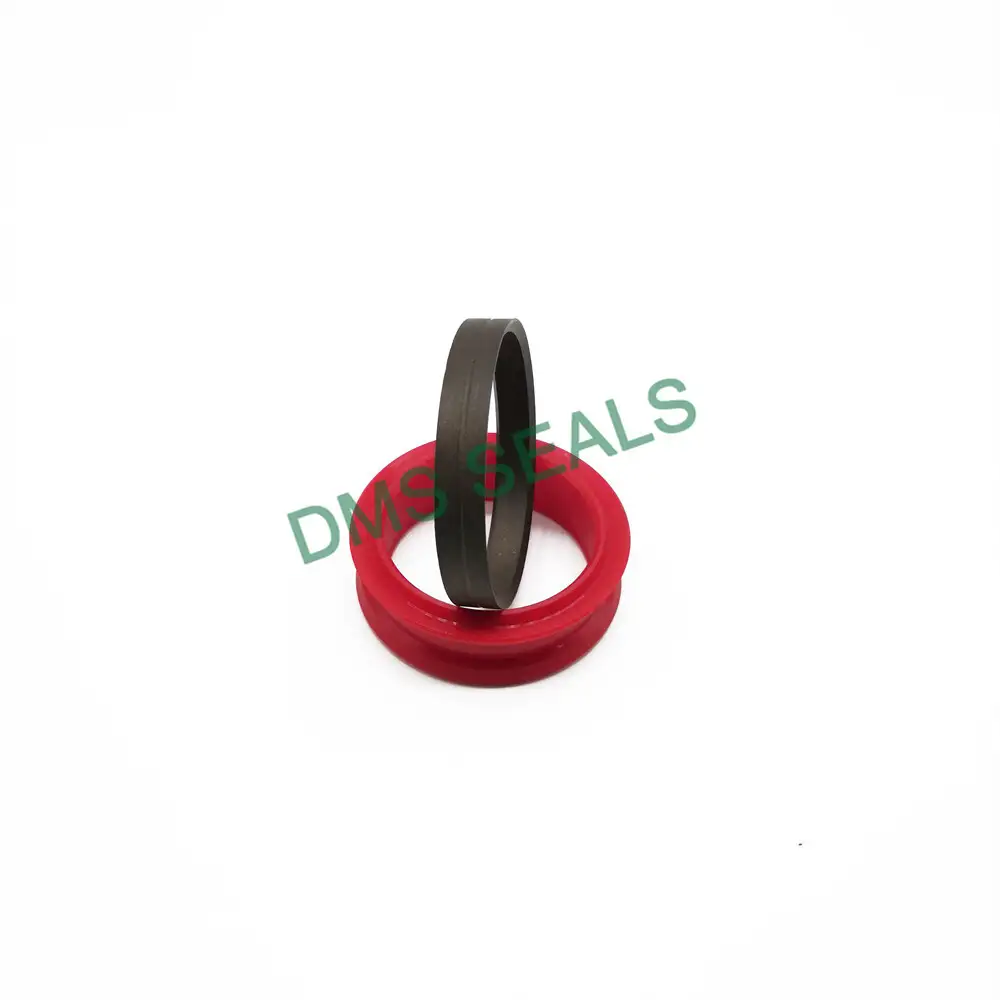

6.Product Display
