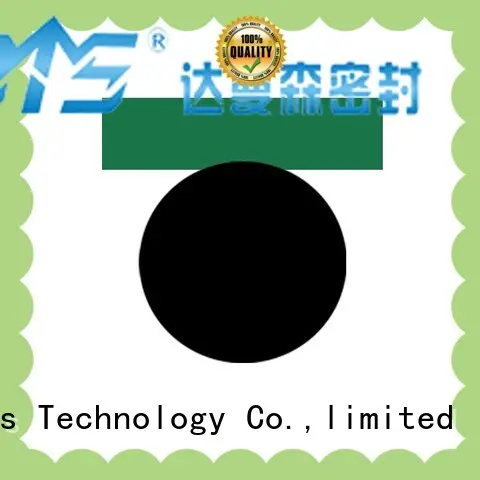

compact o-ring seal glyd ring for light and medium hydraulic systems 1

compact o-ring seal glyd ring for light and medium hydraulic systems 2

compact o-ring seal glyd ring for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. During the preliminary stage of DMS Seal Manufacturer rubber piston seals, the sizes of each part are accurately designed with the help of CAD and cutting plotter. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. The product caters to the development of industry market with broad prospects. DMS Seals provides professional design and production of high-grade o-ring seals
3. This product has been recognized by industry experts for its excellent performance. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
4. The product abides by international quality standards. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions
