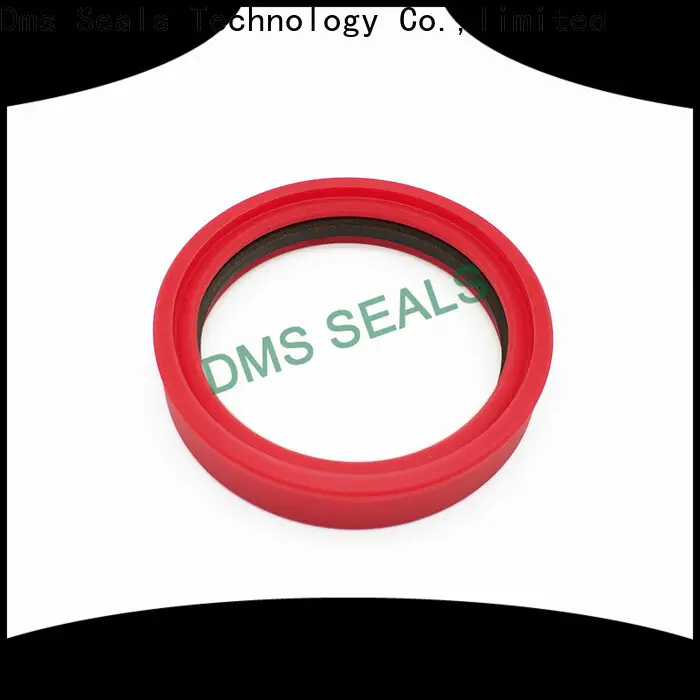

compact piston seal manufacturers wholesale

Company Advantages
1. DMS Seals adopts advanced and safet raw material.
2. To attract more customers, it is also necessary for DMS Seals to attach great importance to the design of piston seal manufacturers .
3. The production standards of DMS Seals are the highest in the industry.
4. piston seal manufacturers excels due to its obvious superiority such as .
5. By integrating and , Dms Seals Technology Co.,limited is able to produce finest piston seal manufacturers .
6. With features like , piston seal manufacturers is suite for automotive seal manufacturers in mechanical seal ring area.
7. piston seal manufacturers has passed ISO 9001 and .
8. Dms Seals Technology Co.,limited owns strong product development team and brand planning team.
9. The quality of piston seal manufacturers can be guaranteed by DMS Seals.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. With rich experience in developing and producing piston seal manufacturers , Dms Seals Technology Co.,limited has got the recognization among competitors in the industry. Dms Seals Technology Co.,limited has been one of the most famous manufacturers of providing . We are an experienced supplier in the industry. Dms Seals Technology Co.,limited has engaged in the field of R&D and manufacturing of for years. Now, we are a very competitive supplier in China. Dms Seals Technology Co.,limited has gained the market recognized manufacturing strength based on years of experience and expertise. Dms Seals Technology Co.,limited is a market recognized manufacturer. We have become a domestic influential enterprise that is known for competent in manufacturing automotive seal manufacturers .
2. Our factory has achieved the import and export license issued by the National License Bureau. This means the factory is legally enforceable to export and import merchandises without troubles in the clearance of goods which may delay or affect the receiving. Our factory has introduced various production facilities from different countries. These advanced facilities contribute a lot to improving productivity, reducing energy consumption, and cutting lead time. Dms Seals Technology Co.,limited includes a strong technical foundation and manufacturing capacities. We have advanced technology and advanced production equipment to ensure product quality.
3. We believe in Quality Service and our approach has been designed to provide the same. We listen carefully to our clients and provide space, time and materials according to an agreement for the project. Get an offer! Sustainability encompasses the social, environmental and economic responsibilities of our operations throughout the value chain. Our aim is to ensure a positive total contribution to society. Get an offer! Dms Seals Technology Co.,limited actively verifies the quality of raw materials we purchase. We take environmental and energy-related problems into our consideration as early as the planning and development phases. In terms of water consumption, waste management, and energy conservation, we are working hard to achieve progress.
