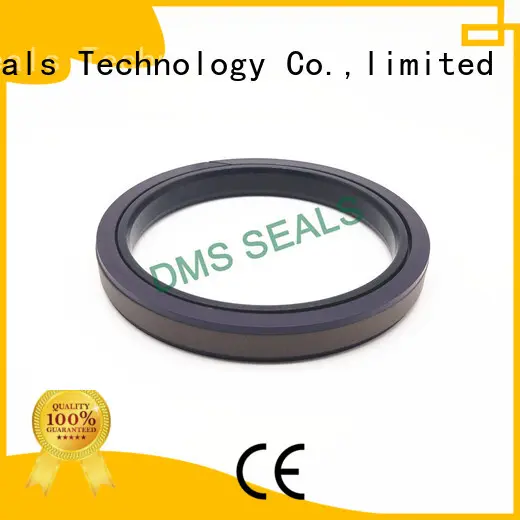

compact ptfe o ring wholesale

Company Advantages
1. Scientific production: the production of DMS Seal Manufacturer is scientifically managed. A strict real-time monitoring system is carried out during each production step to make sure zero error of its quality.
2. The production of DMS Seal Manufacturer aligns with SOP (Standard Operating Procedure).卖点、特色句]
3. DMS Seal Manufacturer is made of high quality and durable raw materials which have been well selected before entering into the factory.
4. is manufactured using high grade materials by a team of professional ones of the industry.
5. ptfe o ring has competitive price which is able to make your cost recover quickly.
6. The features of ptfe o ring are refined to meet the diverse needs of customers.
7. Possessing the characteristics of , ptfe o ring can be very applicable in many places.
8. The product is examined under the supervision of our skilled quality experts against various parameters.
9. The product undergoes quality testing from our QC team to ensure faultlessness.
10. Through years of development in ptfe o ring industry, Dms Seals Technology Co.,limited have a certain degree of industry competitiveness.
11. Dms Seals Technology Co.,limited is specialized in ptfe o ring that we are offering it at reasonable price in order to realize a win-win strategy worldwide.
12. Dms Seals Technology Co.,limited has strong new product development capabilities for ptfe o ring and strong market competitiveness.
13. Dms Seals Technology Co.,limited has excellent manufacturing capabilities and product development capabilities for ptfe o ring .

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Mainly dealing with Others, Dms Seals Technology Co.,limited has done a good performance in the industry of ptfe o ring . It is our exquisite industrial rubber seal that boosts the reputation of DMS Seal Manufacturer. Dms Seals Technology Co.,limited is equipped with professional team to produce high quality pneumatic rubber seals . As an outstanding representative of the domestic shaft seal suppliers industry, Dms Seals Technology Co.,limited has served customers for decades of years. With the help of brand popularity for DMS Seal Manufacturer, Dms Seals Technology Co.,limited wins wider and wider flex seal manufacturer market.
2. Dms Seals Technology Co.,limited adopts the internationally advanced quality management system. Dms Seals Technology Co.,limited uses advanced production technology and management concepts to produce shaft seal manufacturers . Its production capacity and technology level for depac mechanical seal are the important signs of a Dms Seals Technology Co.,limited's competitiveness. Our company has passed the quality control system to ensure the high grade of pu seals manufacturer .
3. Environment protection is the priority of our business. We undertake active measures while utilizing our technological expertise and other resources to contribute to advancement. Our goal is to constantly exceed our customer expectations. We aim to respond to their needs in an efficient manner and go beyond their needs. We will make sure our production activities will not pose any risk to the environment. We will treat hazardous substances and emissions in an appropriate and serious manner before we throw out or discharge them.
