Custom ball bearing run price for sale

Company Advantages
1. The specifications of DMS Seals ball bearing run is in accordance with the production standards. To reduce costs with high-efficiency work is the DMS's purpose
2. DMS Seals may be the most professional ball bearing run manufacturer. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
3. The fabric of this product is hypoallergenic for the reason that it is free of any materials that can cause allergic reactions. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
4. This product has good structural strength. The fibers are tightly woven, the structure is firm, and the edges are not easily worn. DMS Seals takes the lead in grasping the development trend of the industry

1. Installation Recommendation

2. Application and properties

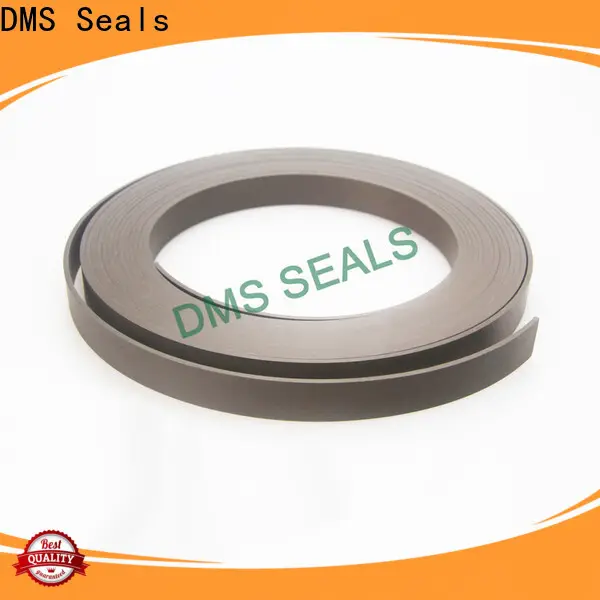

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. Dms Seals Technology Co.,limited, as a widely known enterprise, has earned a reputation in the field of ball bearing run .
2. In order to achieve high quality, Dms Seals Technology Co.,limited introduces technology.
3. Dms Seals Technology Co.,limited is always here to provide the best service for our customers. Inquire online!
