custom carbon seal manufacturer wholesale

Company Advantages
1. Environmental design concept: DMS Seal Manufacturer is designed by our designers who keep environmental awareness in mind. They aim to design a product that gives a paperless feeling.
2. DMS Seal Manufacturer has passed the following physical and mechanical tests. These tests include a strength test, fatigue test, hardness test, bending test, and rigidity test.
3. The whole process of DMS Seal Manufacturer is energy efficient. The primary processes are improved including the design of its structure and the computer control of production.
4. DMS Seal Manufacturer is verified to comply with the worldwide gift and crafts regulations and industry standards by the third-party authorities who are specialized in quality authentication.
5. DMS Seal Manufacturer carbon seal manufacturer is manufactured by adopting the highest standards in the sanitary ware industry, not just in terms of the choice of raw materials, but also the production processes.
6. We continuously monitor and adjust the production process to ensure that the product quality meets the policy requirements of customers and the company.
7. The product is tested under the vigilance of our proficient professionals who clearly know quality standards laid down by the industry.
8. Several tests were performed at each stage of production to ensure consistency in product quality.
9. DMS Seal Manufacturer can also guarantee the fast delivery time.
10. Dms Seals Technology Co.,limited currently provides a large number of high-quality products for carbon seal manufacturer industry.
11. To be a dominant carbon seal manufacturer supplier, DMS Seal Manufacturer has been strictly carried out the quality assurance.
12. With a strong sense of responsibility, DMS Seal Manufacturer has been very popular in the carbon seal manufacturer field.
13. Dms Seals Technology Co.,limited continues to create value for customers, employees and all stakeholders.

1. Installation Recommendation

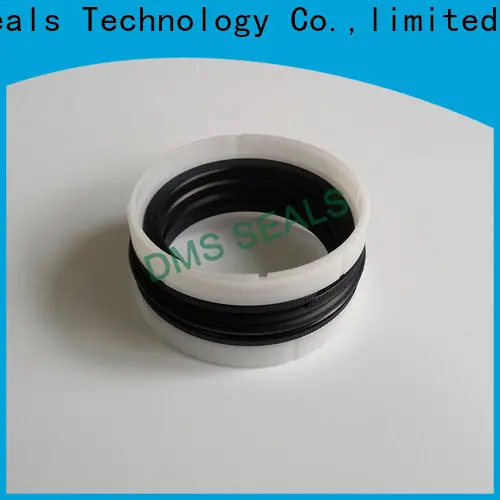

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. With years of development, Dms Seals Technology Co.,limited has earned a good reputation among many competitors. We focus on the development, design, production, and marketing of carbon seal manufacturer . Dms Seals Technology Co.,limited is a Chinese manufacturer focused on supplying quality . Years of development have witnessed our growth in this industry. Dms Seals Technology Co.,limited, regarded as an indispensable provider, has been a preferred choice of designing and manufacturing . With years of experience in the development and production of piston rings by size , Dms Seals Technology Co.,limited has been treated as an expert in the industry. Dms Seals Technology Co.,limited is a reliable supplier from China. We have been manufacturing the best quality mechanical seals houston for a long time.
2. Our factory is equipped with a wide range of testing machines. With their high sensitivity, these machines help us efficiently test our products so that we can meet or exceed industry standards. With complete, scientific and quality management, the factory has established and perfected strict testing system for products. Hence, we can carry out the professional quality inspection to ensure the quality of the products. We have set up a dedicated sales team. With their deep understanding of our products and a certain understanding of overseas culture, they can deal with our customers' inquiries quickly. We achieved the import and export licenses many years ago. With these licenses, we start and develop business internationally more effectively and to be less affected by other factors.
3. We are making a positive impact on sustainable outcomes which can be seen through major trends such as: improving efficiency, reuse, and recycling, reducing carbon emissions, etc. We try to deliver on expectations and to be the trusted one to design, produce, and deliver high-quality products for our customers and consumers and to provide outstanding service. To achieve sustainable development, we implement the plan of three wastes treatment, including wastewater, waste gases, and waste residue during the production processes. We are heading towards green production and become a "green enterprise". We have conducted business activities in an environmentally positive way, such as controlling production waste scrap and effectively utilizing resources.
