Custom hydraulic cylinder seal design factory for pneumatic equipment

Company Advantages
1. The production of DMS Seals follow the strict standards of lean production.
2. DMS Seals is constructed a unique style and compatible structure.
3. With its appealing design, DMS Seals will attract more attention than before.
4. DMS Seals is manufactured with accuracy in specifications.
5. DMS Seals is a newly designed with advanced international level.
6. This product is with the perfect performance to support the user need.
7. The quality of the product is under the guarantee of international certificates.
8. The product is carefully examined to make sure that it is free from flaws.
9. This product achieves both rich functionality and superior quality.
10. The product is safe and reliable with great functions.
11. This product plays an important design element in interior decoration. It enjoys huge popularity among many designers and architects.
12. This product is ideal for people seeking arch support for prevention and treatment of foot pain such as bunions, ball of the foot pain, flat feet, heel pain, and many other conditions.
13. This product is totally reliable. It gives the promised output in promised time with promised efficiency. - Said one of our customers.
14. This well-fitting garment is flattering for people's figure and also make people look more put together and in control.
15. People can trust that the product is safe to use, and it does not contain any harmful substances, such as formaldehyde or toxic chemicals.

DDMA is used for in-line seals in a variety of liquid applications and is an internal seal. Mainly used for piston and plunger seals. Can be used in mineral oils, modified oils, flame retardant hydraulic oils and compressed air.

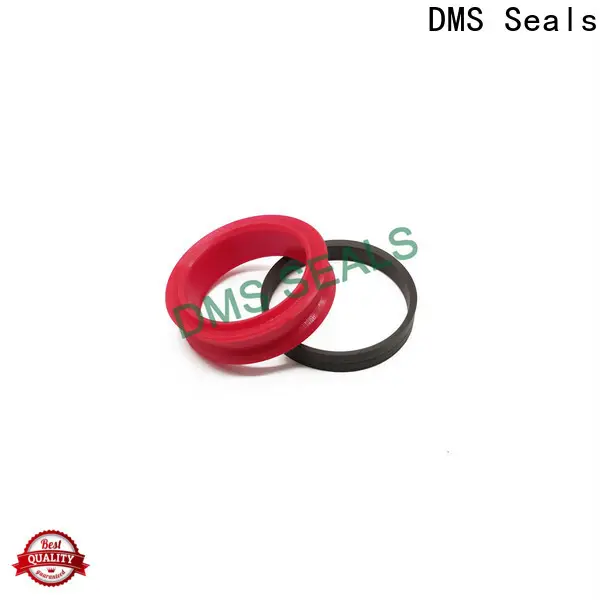

DDMA is sealed by a combination of a double-lip elastomer and a wear ring. Before installation, the sealing lip protrudes outward, and after installation, the cylinder liner is pressed tightly to provide elastic force for the wear ring, which can achieve excellent sealing effect even in the absence of pressure. The liquid on both sides of the separable sealing ring is also suitable for the sealing of the oil chamber to prevent the intrusion of other liquids.

Standard material

Sealing Ring: Filled PTFE

Elastomer: Nitrile NBR or Polyurethane PU

Features

-Easy installation

-High wear resistance

- Low friction, no stick-slip

NO.	SIZE	NO.	SIZE
1	DDMA40*30*16	28	DDMA200*188*16
2	DDMA45*35*16	29	DDMA210*198*16
3	DDMA50*40*16	30	DDMA220*208*16
4	DDMA56*46*16	31	DDMA225*213*16
5	DDMA63*53*16	32	DDMA235*223*16
6	DDMA65*55*16	33	DDMA240*228*16
7	DDMA70*60*16	34	DDMA250*238*16
8	DDMA75*65*16	35	DDMA265*253*16
9	DDMA80*70*16	36	DDMA275*263*16
10	DDMA85*75*16	37	DDMA280*268*16
11	DDMA90*80*16	38	DDMA290*278*16
12	DDMA95*85*16	39	DDMA300*288*16
13	DDMA100*90*16	40	DDMA310*296*16
14	DDMA105*95*16	41	DDMA320*306*16
15	DDMA115*105*16	42	DDMA340*326*16
16	DDMA120*110*16	43	DDMA350*336*16
17	DDMA125*113*16	44	DDMA360*346*16
18	DDMA130*118*16	45	DDMA380*366*16
19	DDMA135*123*16	46	DDMA400*384*16
20	DDMA140*128*16	47	DDMA420*404*16
21	DDMA145*133*16	48	DDMA425*409*16
22	DDMA150*138*16	49	DDMA450*434*16
23	DDMA155*143*16	50	DDMA480*464*16
24	DDMA160*148*16	51	DDMA500*484*16
25	DDMA170*158*16	52	DDMA560*544*16
26	DDMA180*168*16	53	DDMA600*584*16
27	DDMA190*178*16	54	DDMA630*614*16

Company Features
1. As a hydraulic cylinder seal design manufacturer known to the industry, Dms Seals Technology Co.,limited also surpasses others based on the intimate after-sales service. Dms Seals Technology Co.,limited has a high level of professionalism in production of piston seal hydraulic . Dms Seals Technology Co.,limited is a company that integrates kit seal cylinder development, market development, manufacturing and sales.
2. Dms Seals Technology Co.,limited has successfully applied for technology patents for hydraulic cylinder seals and wipers . Dms Seals Technology Co.,limited adopts imported raw material to control quality of external seal . The quality of Dms Seals Technology Co.,limited is controlled by our sophisticated production equipment.
3. Dms Seals Technology Co.,limited has newly established the service concept of . Get an offer! Your air cylinder piston seals is our pursuit. Get an offer! DMS Seals has been striving to achieve to be the leading piston washer manufacturer. Get an offer! Dms Seals Technology Co.,limited tries to structure as its service ideology. Get an offer!
