Custom hydraulic pump oil seal cost for pressure work and sliding high speed occasions

Company Advantages
1. Application shows that the reformed hydraulic pump oil seal has rational structure and performance.
2. We can customize shapes for our hydraulic pump oil seal .
3. The design of hydraulic pump oil seal 's body frame is based on effect improvement and insufficiencies amendment.
4. This new type hydraulic pump oil seal called is gradually widely used with its outstanding design.
5. hydraulic pump oil seal is applied to many fields of .
6. hydraulic pump oil seal is widely used as it has the property of long service life and .
7. The production practice shows that hydraulic pump oil seal is warmly welcome by because of .
8. hydraulic pump oil seal has intelligence functions of , with characteristics of .
9. hydraulic pump oil seal has the characteristic of , it has an extensive application prospect.
10. One of our buyers said that this product makes my building become more energy-efficient. It will help save my energy costs in the long term.
11. The product shines with its full light output almost instantly after switching it on. - One of our customers said.
12. This product has evolved tremendously to become a must-have for any occasion. People who used this product praised that it combines both aesthetics and practicability.
13. The product is able to provide business owners with relevant reports to help them make profit-enhancing decisions in a timely manner.

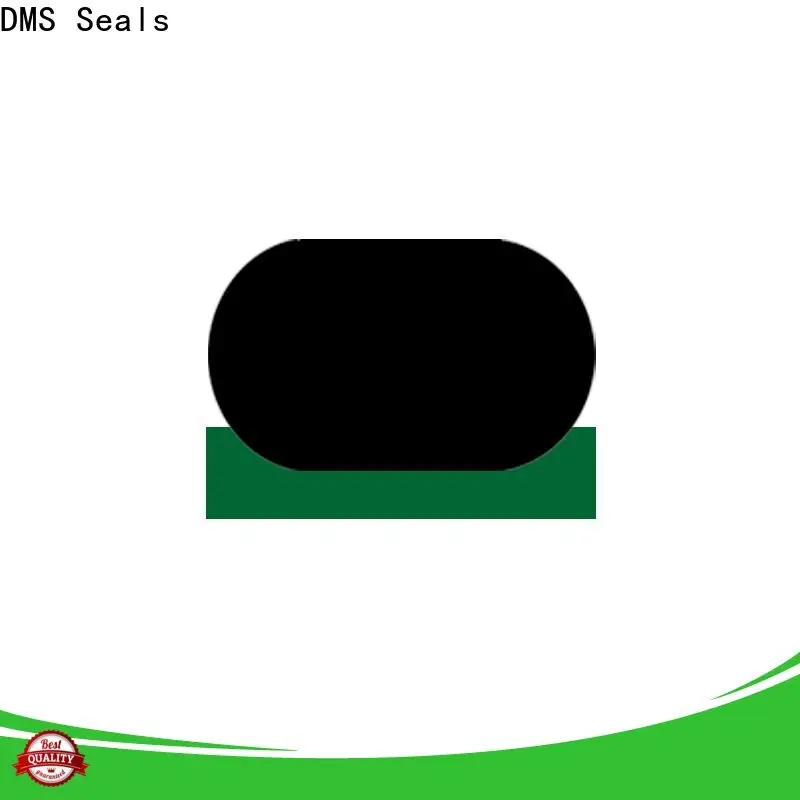

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7

Company Features
1. Dms Seals Technology Co.,limited has been regarded as a specialist for designing, manufacturing, marketing of . We have gained wide acceptance in the industry. Dms Seals Technology Co.,limited has evolved into an expert that develops, design, and produces . We are highly identified by competitors. With advanced expertise in manufacturing hydraulic pump oil seal , Dms Seals Technology Co.,limited has highly recognized and respected in the domestic market.
2. We have brought together a professional QC team in our manufacturing factory. They test each product before delivery, which ensures product consistency and complies fully with industry guidelines. We have our own factory. Covering a large area and being equipped with advanced production lines and high-end machines, it meets needs from the rapidly developing markets. We have a team of experienced professionals. With years of research, they are knowledgeable about industry trends and the critical issues impacting the manufacturing industry.
3. Dms Seals Technology Co.,limited always keep as its service principle. Inquire! DMS Seals gets wide trusts and respect for excellent and . Inquire! Dms Seals Technology Co.,limited heartily adhere to the service philosophy that pneumatic seals . Inquire! It is the tenet of cup seals for hydraulic cylinders that accelerates the development of DMS Seals. Inquire! In order to meet customers' satisfactions, Dms Seals Technology Co.,limited has built a complete service system to solve all possible problems. Inquire!

Custom hydraulic pump oil seal cost for pressure work and sliding high speed occasions

hydraulic pump oil seal

Type:
