Custom meter seals suppliers cost

Company Advantages
1. The production of meter seals suppliers always takes into account.
2. With the design of , our meter seals suppliers is notably suitable for the usage in .
3. Based on material, meter seals suppliers whose properties is better is acquired.
4. The product is characterized by its high quality and durability.
5. It is detailed tested by our professional QC team.
6. The quality monitoring system has been set up to control the quality of this product.
7. DMS Seals introduces an efficient quality management system to effectively guarantee its quality.
8. The product is widely applied to in the market for its huge economic potential.
9. The product, with an increasing reputation in the market, has a great developmental prospect.
10. The excellent characteristics give the product greater market application potential.
11. The product is highly suitable for various applications.

1. Installation Recommendation

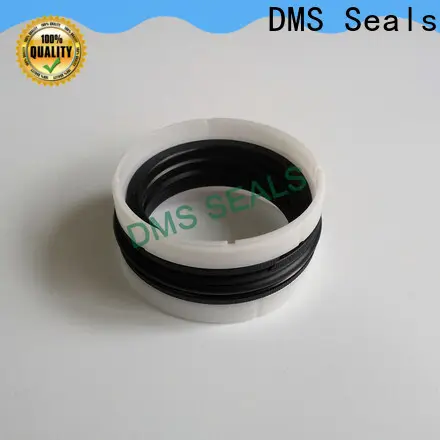

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. Dms Seals Technology Co.,limited has become a famous manufacturer with market recognition. We are experienced at the forefront of R&D and manufacture of . Dms Seals Technology Co.,limited has held a safe lead in the development and production of . We have developed into a company with strong competitiveness. Dms Seals Technology Co.,limited has gone far ahead of the domestic market in the developing, designing, and manufacturing of . Dms Seals Technology Co.,limited has been playing an important role in designing and manufacturing . We are widely accepted in the industry. Dms Seals Technology Co.,limited boasts years of excellent manufacturing expertise in meter seals suppliers and has been regarded as one of the leading manufacturers in the industry.
2. hydraulic cylinder piston is provided in DMS Seals which is famous for its high quality. Dms Seals Technology Co.,limited gained honor in the profession by its excellent equipment, advanced technology and modern management. Dms Seals Technology Co.,limited has a complete production line and advanced testing method. The natural rubber seal is of high quality. Our technical workers are strictly trained before official work for glyd ring .
3. By evolving culture of entrepreneurship, Dms Seals Technology Co.,limited has sharpened its competitive edge of . Inquiry! We insist on high quality and professional service for our common seal manufacturers . Inquiry! Dms Seals Technology Co.,limited is committed to the creation of well-being to the general public in a sustainable way. Inquiry! Presenting high quality customer service has been always something that DMS Seals sticks to. Inquiry! Dms Seals Technology Co.,limited has always adhered to the business tenet of 'Quality First, Credit First'. Inquiry!
