DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

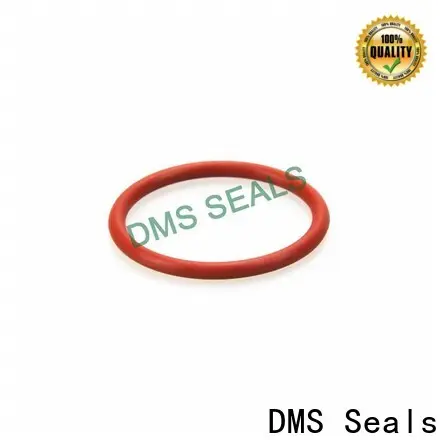

Custom rubber washers and o rings supply for static sealing
- Dms Seals insists that service is the basis of survival. We are committed to providing professional and quality services.
1. DMS Seals rubber washers and o rings is fabricated selecting high quality raw materials.
2. Perfect design: the design of DMS Seals is carefully conducted. Its design has been proven to be a perfect combination of aesthetics and functions.
3. The production technique implemented in the production of DMS Seals is advanced and greatly guaranteed. It is a new production technique aimed at minimizing wastage.
4. The product is efficient in removing dirt and contaminant. Due to its extremely small polyporous filter elements, any harmful substances, small molecule or macromolecular, will be removed effectively.
5. The product is high-temperature resistant. It is made of heat-resisting material which features a high melting and decomposition point.
6. The product performs well in heat resistance. The materials used in it have a high coefficient of heat conductivity and a relatively low coefficient of linear expansion which make it not prone to fracture under high temperature.
7. It has good luster. Anti-yellowing technology has been adopted to process the surface, and the materials are all highly resistant to yellowing.
8. The product has a strong resistance to corrosion. Non-corrosive materials are used to enhance the product's capability to withstand rust, moisture, and chemical liquids.
9. Dms Seals Technology Co.,limited's simple and efficient one-stop marketing service system can let customers trust us all the time.
10. It is the acquirement of customers to DMS Seals that motivates it to be more concentrated on producing finest rubber washers and o rings .
11. With strong sense of responsibility, DMS Seals staff are devoted themselves into producing exquisite rubber washers and o rings .
12. Dms Seals Technology Co.,limited's after-sale service team would be glad to help you do repair fast and at low cost.
13. Dms Seals Technology Co.,limited's products are all 100% guaranteed by high quality foreign brands.
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
Silicone
4. Performance parameter
Static Seal | Dynamic Seal | |
Working Pressure | No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. | No support ring, up to 5MPa; With the support ring, higher pressure. |
Movement Speed | Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. | |
Temperature | NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. | |
5. Wire Diameter Tolerance
Wire diameter of O-Ring (mm) | Tolerance (±mm) |
0-1.8 | 0.08 |
1.80-2.65 | 0.09 |
2.65-3.55 | 0.10 |
3.55-5.30 | 0.13 |
5.30-7.00 | 0.15 |
7.00-8.00 | 0.18 |
8.00-10.00 | 0.21 |
10.00-12.00 | 0.25 |
6. Inner diameter tolerance
Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm |
0.70-2.50 2.50-4.50 4.50-6.30 | 0.13 0.14 0.15 | 43.70-45.00 46.00-46.20 46.20-47.50 | 0.42 0.43 0.44 | 95.00-97.50 97.50-100.00 100.00-103.00 | 0.83 0.84 0.87 |
6.30-8.50 8.50-10.00 10.00-11.20 | 0.16 0.17 0.18 | 47.50-48.70 48.70-50.00 50.00-51.50 | 0.45 0.46 0.47 | 103.00-106.00 106.00-109.00 109.00-112.00 | 0.89 0.91 0.93 |
11.20-14.00 14.00-16.00 16.00-18.00 | 0.19 0.20 0.21 | 51.50-53.00 53.00-54.50 54.50-56.00 | 0.48 0.50 0.51 | 112.00-115.00 115.00-118.00 118.00-122.00 | 0.95 0.97 1.00 |
18.00-20.00 20.00-21.20 21.20-23.60 | 0.22 0.23 0.24 | 56.00-58.00 58.00-60.00 60.00-61.50 | 0.52 0.54 0.55 | 122.00-125.00 125.00-128.00 128.00-132.00 | 1.03 1.05 1.08 |
23.60-25.00 25.00-26.50 26.50-28.00 | 0.25 0.26 0.28 | 61.50-63.00 63.00-65.00 65.00-67.00 | 0.56 0.58 0.59 | 132.00-136.00 136.00-140.00 140.00-145-00 | 1.10 1.13 1.17 |
28.00-30.00 30.00-31.50 31.50-33.50 | 0.29 0.31 0.32 | 67.00-69.00 69.00-71.00 71.00-73.00 | 0.61 0.63 0.64 | 145.00-150.00 150.00-155.00 155.00-160.00 | 1.20 1.24 1.27 |
33.50-34.50 34.50-35.50 35.50-36.50 | 0.33 0.34 0.35 | 73.00-75.00 75.00-77.50 77.50-80.00 | 0.66 0.67 0.69 | 160.00-165.00 165.00-170.00 170.00-175.00 | 1.31 1.34 1.38 |
36.50-37.50 37.50-38.70 38.70-40.00 | 0.36 0.37 0.38 | 80.00-82.50 82.50-85.00 85.00-87.50 | 0.71 0.73 0.75 | 175.00-180.00 180.00-185.00 185.00-190.00 | 1.41 1.44 1.48 |
40.00-41.20 41.20-42.50 42.50-43.70 | 0.39 0.40 0.41 | 87.50-90.00 90.00-92.50 92.50-95.00 | 0.77 0.79 0.81 | 190.00-195.00 195.00-200.00 200.00-206.00 | 1.51 1.55 1.59 |
206.00-212.00 212.00-218.00 224.00-230.00 | 1.63 1.71 1.75 | 325.00-335.00 335.00-345.00 345.00-355.00 | 2.43 2.49 2.56 | 500.00-515.00 515.00-530.00 530.00-545.00 | 3.54 3.63 3.72 |
230.00-236.00 236.00-243.00 243.00-250.00 | 1.79 1.83 1.88 | 355.00-365.00 365.00-375.00 375.00-387.00 | 2.62 2.68 2.76 | 545.00-560.00 560.00-580.00 580.00-600.00 | 3.81 3.93 4.05 |
250.00-258.00 258.00-265.00 265.00-272.00 | 1.93 1.98 2.02 | 387.00-400.00 400.00-412.00 412.00-425.00 | 2.84 2.91 2.99 | 600.00-615.00 615.00-630.00 630.00-650.00 | 4.13 4.22 4.34 |
272.00-280.00 280.00-290.00 290.00-300.00 | 2.08 2.14 2.21 | 425.00-437.00 437.00-450.00 450.00-462.00 | 3.07 3.15 3.22 | 650.00-670.00 | 4.46 |
300.00-307.00 307.00-315.00 315.00-325.00 | 2.25 2.30 2.37 | 462.00-475.00 475.00-485.00 485.00-500.00 | 3.30 3.37 3.45 |
Company Features
1. Being superior in producing high quality rubber washers and o rings , DMS Seals has become a star brand in the industry. Dms Seals Technology Co.,limited ranks first in the wiper seal design industry. Dms Seals Technology Co.,limited is an independent company specializing in rubber o rings ace hardware . Dms Seals Technology Co.,limited, as an enterprise specializing in producing 4 inch metal o rings , enjoys high popularity among the market.
2. The reliable machine are equipped to guarantee the quality of o ring catalogue metric . Dms Seals Technology Co.,limited has sophisticated processing equipment for o-ring seal production. Advanced technology greatly improves the capacity and quality of metric square o rings .
3. Dms Seals Technology Co.,limited will continuously improve its neoprene rubber o rings after sales service system. Contact! The basic service philosophy of Dms Seals Technology Co.,limited is that . Contact! To survive in market of 1 inch rubber o ring , Dms Seals Technology Co.,limited will never forget that quality is key point. Contact! To pursue , will be the eternal tenet of Dms Seals Technology Co.,limited. Contact! is a fundamental tenet of an efficient and well-organized development for Dms Seals Technology Co.,limited. Contact!
