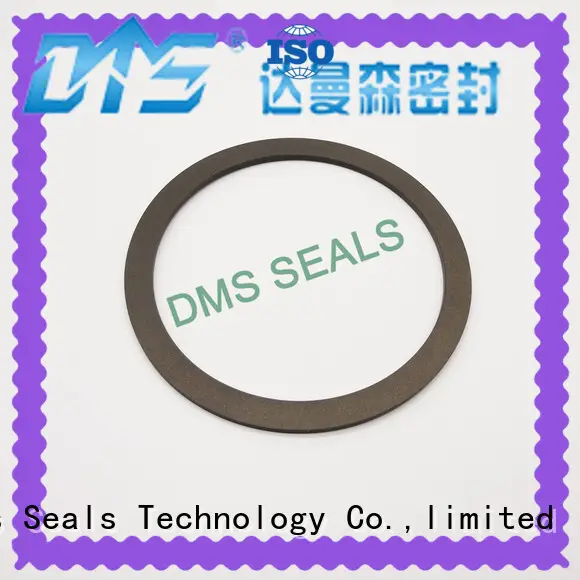

custom viton gasket hot sale for preventing the seal from being squeezed DMS Seal Manufacturer

Company Advantages
1. Compared with normal material, the remarkable advantages of material for nbr gasket prove that custom gaskets is the best.
2. The unique design of nbr gasket overshadows that of other companies.
3. The unique function of nbr gasket is well received by the customers.
4. Our nbr gasket are constantly updated to follow the trend.
5. nbr gasket is developed for higher performance and viton gasket .
6. Every detail of the product has been carefully inspected by profession QC staff.
7. nbr gasket has established the product image of high quality, attractive appearance, and viton gasket .
8. This series of nbr gasket combines the characteristics of viton gasket and gasket manufacturers .
9. DMS Seal Manufacturer ensures each step of producing nbr gasket under the strict quality assurance.
10. Dms Seals Technology Co.,limited makes full use of computer-aided software to design nbr gasket.
11. Dms Seals Technology Co.,limited has developed many long-term partnership with many famous brands.

1. Application and properties

BRT are used to prevent the seal from being squeezed, and improve the pressure resistance of the seal. The standard cut shape is beveled. If there is no problem with the installation, a non-cut ring can also be used.

2. Standard materials

Bronze filled PTFE

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +260℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

4. Installation Dimensions

d	D	T	Order No.
40 45 45	50 55 60	3 3 3	BRT40*50*3 BRT45*55*3 BRT45*60*3
50 50 50	60 63 65	3 3 3	BRT50*60*3 BRT50*63*3 BRT50*65*3
55 55 55	65 68 70	3 3 3	BRT55*65*3 BRT55*68*3 BRT55*70*3
60 60 60	70 73 75	3 3 3	BRT60*70*3 BRT60*73*3 BRT60*75*3
60 65 65	80 75 78	3 3 3	BRT60*80*3 BRT65*75*3 BRT65*78*3
65 65 70	80 85 80	3 3 3	BRT65*80*3 BRT65*85*3 BRT70*80*3
70 70 70	83 85 90	3 3 3	BRT70*83*3 BRT70*85*3 BRT70*90*3
75 75 75	85 88 90	3 3 3	BRT75*85*3 BRT75*88*3 BRT75*90*3
75 80 80	95 90 93	3 3 3	BRT75*95*3 BRT80*90*3 BRT80*93*3
80 80 85	95 100 100	3 3 3	BRT80*95*3 BRT80*100*3 BRT85*100*3
85 90 90	105 105 110	3 3 3	BRT85*105*3 BRT90*105*3 BRT90*110*3
95 95 100	110 115 115	3 3 3	BRT95*110*3 BRT95*115*3 BRT100*115*3
100 105 105	120 120 125	3 3 3	BRT100*120*3 BRT105*120*3 BRT105*125*3
110 110 115	125 130 130	3 3 3	BRT110*125*3 BRT110*130*3 BRT115*130*3
115 120 120	135 135 140	3 3 3	BRT115*135*3 BRT120*135*3 BRT120*140*3
125 125 130	140 145 145	3 3 3	BRT125*140*3 BRT125*145*3 BRT130*145*3
130 140 150	150 160 170	3 3 3	BRT130*150*3 BRT140*160*3 BRT150*170*3
160 170 180	180 190 200	3 3 3	BRT160*180*3 BRT170*190*3 BRT180*200*3

Company Features
1. As a developing company, Dms Seals Technology Co.,limited has been developing into manufacturing nbr gasket. As a rising star in custom gaskets industry, DMS Seal Manufacturer has received more and more praises until now. The realization of its own sustainable development helps DMS Seal Manufacturer advance more than before. Dms Seals Technology Co.,limited takes the leading position among vacuum gasket enterprises in China from aspects of human resource, technology, market, manufacturing capability and so on.
2. Many famous brand companies choose our elastomeric gasket because they deeply rely on our quality. Trusted by more and more customers, DMS Seal Manufacturer has been more famous for its Gasket . Thanks to our advanced machines, the productivity and quality of nbr gasket is highly increased.
3. Dms Seals Technology Co.,limited constantly optimizes its management and service system for better development. Check it! Dms Seals Technology Co.,limited is ready to provide the best service and nbr gasket for every customer. Check it! Dms Seals Technology Co.,limited will work hard to develop itself as a world-renowned professional nbr gasket producer. Check it!

custom viton gasket hot sale for preventing the seal from being squeezed DMS Seal Manufacturer

nbr gasket

Type:custom
