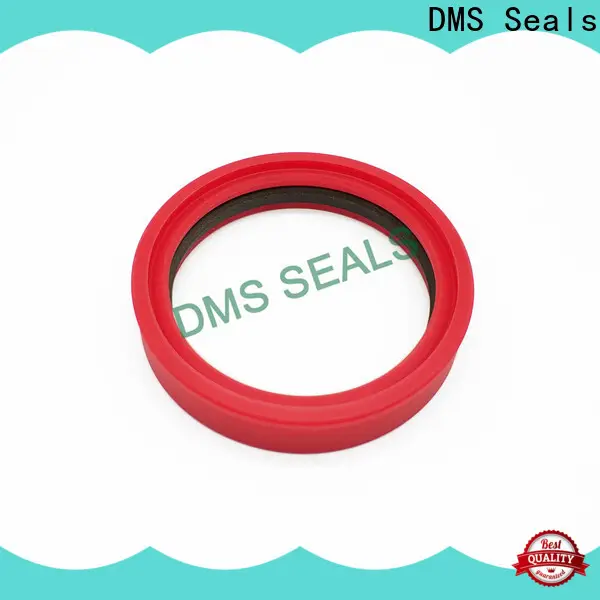

Customized bearing seal manufacturers supplier for piston and hydraulic cylinder

Company Advantages
1. DMS Seals is designed by our professional designers who strive to achieve economical and efficient mechanical performance, including operational stability, structure reliability, and operation efficiency, etc.
2. DMS Seals bearing seal manufacturers will be assessed in a comprehensive manner. The assessment is mainly related to the mechanical properties, such as corrosion resistance, fatigue failure, structural strength, and toughness.
3. The design of DMS Seals is unique. It is made by our designers with new types of fabrics, new colors and innovative structures.
4. DMS Seals goes through professional processing. The production of its parts includes forging, welding, anodizing, polishing, or even precision casting.
5. Product quality in line with industry standards, and through the international certification.
6. The product is believed to function timelessly with improved reliability and is expected to serve users for a long time without any defects.
7. As we have established a good quality management system to prevent any possible defects, the quality of products is guaranteed.
8. When we refer to bearing seal manufacturers , people all know that quality is best.
9. Dms Seals Technology Co.,limited will highly value the importance of package for bearing seal manufacturers .
10. bearing seal manufacturers from Dms Seals Technology Co.,limited is exported to foreign countries and has considerable influence.
11. Dms Seals Technology Co.,limited ensures the perfection and the mobility of services.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Years of bearing seal manufacturers production experience, as well as technology improvements, has made Dms Seals Technology Co.,limited become one of the most powerful manufacturers. Dms Seals Technology Co.,limited is a China-based manufacturer with years of experience in the production of . We have earned a solid manufacturing experience. Dms Seals Technology Co.,limited uses the most advanced technology to provide customized solutions.
2. With accumulated experience in technology, Dms Seals Technology Co.,limited has reached technological standards of the industry. To control quality of sog oil seal manufacturer , we build a complete set of testing system. Dms Seals Technology Co.,limited adopts high technology in the production of meter seals suppliers to ensure high quality. With a view to guaranteeing quality of china mechanical seal manufacturers , Dms Seals Technology Co.,limited introduced sophisticated facilities. Equipped with professional technician, Dms Seals Technology Co.,limited aims to produce high quality ptfe o ring .
3. Implementing the strategy of strengthening piston rings by bore size is a requirement for the sustainable and healthy development of DMS Seals. Get quote! will be our long-term business philosophy and we will keep proving best quality and service to customers. Get quote! With the growing growth of u seal manufacturers industry, plays an important role in the development of DMS Seals. Get quote! Dms Seals Technology Co.,limited's constant pursuit is to provide quality services to domestic and foreign merchants. Get quote! Dms Seals Technology Co.,limited is always well prepared to supply customers with high quality rubber oil seals manufacturer . Get quote!
