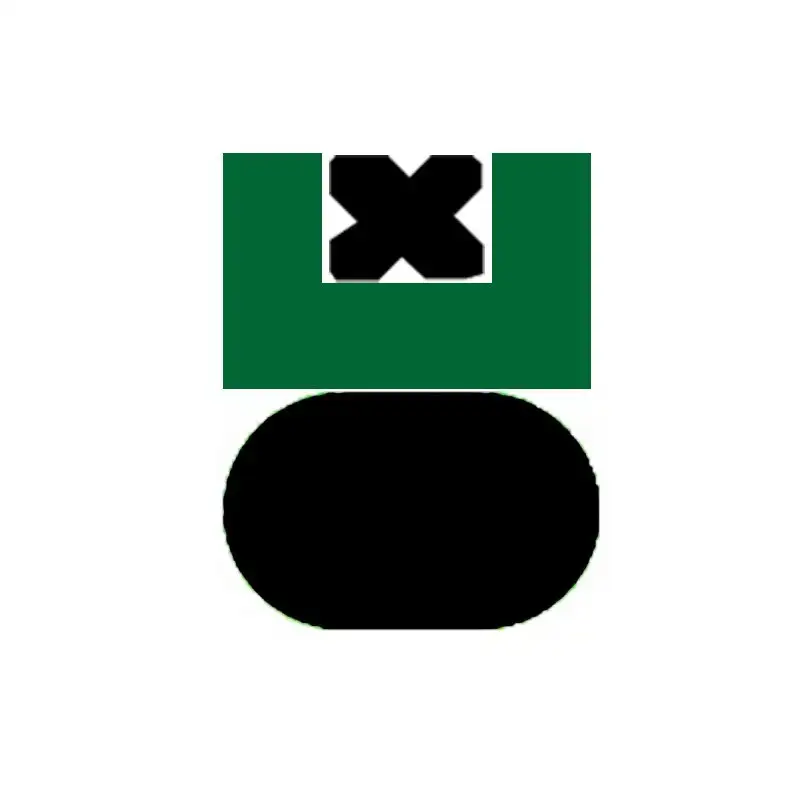

DAQ - PTFE Hydraulic Piston Seals with NBR/FKM O-Ring seal
|
Groove Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross Section |
X-Ring Seal Cross Section |
|||
|
Standard Application |
Light Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
30MPa |
d2 |
W |
|
15 - 39.9 |
40 - 79.9 |
DN - 11.0 |
4.2 |
1.0 |
0.25 |
0.15 |
0.10 |
3.53 |
1.78 |
|
40 - 79.9 |
80 - 132.9 |
DN - 15.5 |
6.3 |
1.3 |
0.3 |
020 |
0.15 |
5.33 |
1.78 |
|
80 - 132.9 |
133 - 252.9 |
DN - 21.0 |
8.1 |
1.8 |
0.3 |
0.20 |
0.15 |
7.00 |
2.62 |
|
133 - 252.9 |
-- |
DN - 24.5 |
8.1 |
1.8 |
0.3 |
0.20 |
0.15 |
7.00 |
2.62 |
|
253 - 462.9 |
-- |
DN - 28.0 |
9.5 |
2.5 |
0.45 |
0.30 |
0.25 |
8.40 |
3.53 |
|
463 - 700 |
-- |
DN - 35.0 |
11.5 |
3.0 |
0.55 |
0.40 |
0.35 |
10.00 |
5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3-1600mm |
0-40MPa |
-30℃+200℃ |
2 m/s |
hydraulic oil, flame retardant liquid, water and others |
|
Bore Dia. |
Groove Dia. |
Groove Width |
Order No. |
O-Ring Dimension |
|
d h9 |
D1 H9 |
L1+0.2 |
||
|
70 |
59 |
4.2 |
DAQ70*59*4.2 |
56.74*3.53 |
|
80 |
64.5 |
6.3 |
DAQ80*64.5*6.3 |
62.87*5.33 |
|
85 |
64 |
8.1 |
DAQ85*64*8.1 |
63*7.0 |
|
95 |
79.5 |
6.3 |
DAQ95*79.5*6.3 |
78.74*5.33 |
|
100 |
79 |
8.1 |
DAQ100*79*8.1 |
78*7.0 |
|
110 |
94.5 |
6.3 |
DAQ110*94.5*6.3 |
91.44*5.33 |
|
115 |
94 |
8.1 |
DAQ115*94*8.1 |
93*7.0 |
|
125 |
109.5 |
6.3 |
DAQ125*109.5*6.3 |
107.32*5.33 |
|
130 |
109 |
8.1 |
DAQ130*109*8.1 |
108*7.0 |
|
150 |
129 |
8.1 |
DAQ150*129*8.1 |
126.37*7.0 |
|
180 |
159 |
8.1 |
DAQ180*159*8.1 |
158.12*7.0 |
|
210 |
189 |
8.1 |
DAQ210*189*8.1 |
183.52*7.0 |
|
240 |
219 |
8.1 |
DAQ240*219*8.1 |
215.27*7.0 |
