DMS Seal Manufacturer air cylinder piston seals Suppliers to high and low speed

Company Advantages
1. DMS Seal Manufacturer adopts premium raw materials that can be a total guaranteed of quality.
2. Making use of advanced technology and the latest design concepts, DMS Seal Manufacturer has various innovative design styles.
3. The appealing design of DMS Seal Manufacturer improves brand awareness.
4. By keeping track with the market development, DMS Seal Manufacturer air cylinder piston seals is given many kinds of designs that are popular in the market.
5. DMS Seal Manufacturer is manufactured by our competent workforce utilizing well-tested material and sophisticated technology following the set norms of the industry.
6. This product can always maintain a clean surface. The lime and other residues are not easy to build upon its surface over time.
7. The product is flame-retardant. Being dipped into the special treating agent, it can delay the temperature from going on.
8. This product has a durable surface. The materials and surface treatment endow its surface with abrasion, impact, scrape and scratch resistance.
9. Customers will find that there is nothing to compare with the feeling of slipping into this soft bedding after a long day.
10. This product aids in displaying some additional information like the contacts, website, and slogan among others. With this, most customers can inquire more about the merchandise or get to make an order.
11. It can yield substantial benefits if applied in industrial production. It will relieve humans from repetitive, hazardous, or unpleasant labor in all forms.

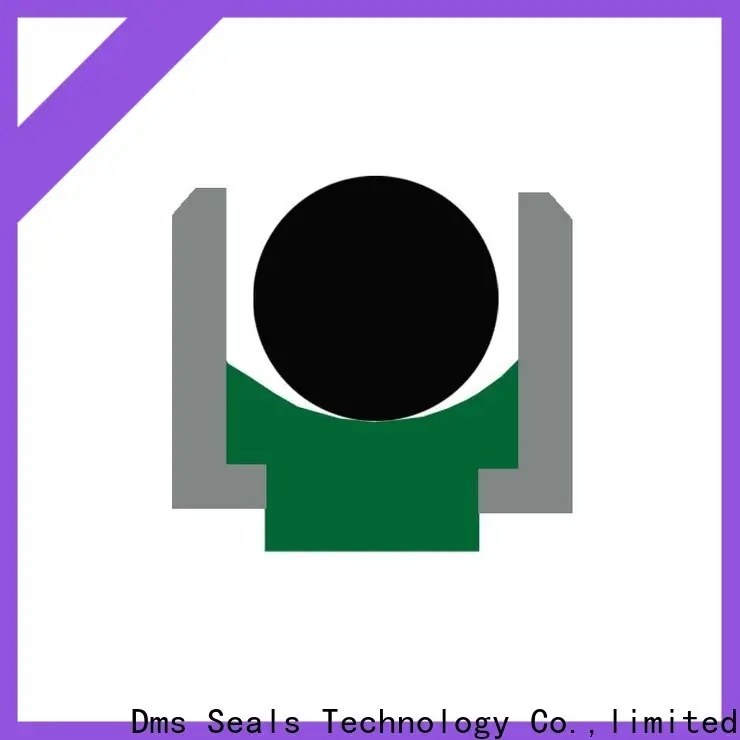

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. Sales organizations, training centers and distributors of Dms Seals Technology Co.,limited are located worldwide. Dms Seals Technology Co.,limited have long histories and strong strength in air cylinder piston seals development. Dms Seals Technology Co.,limited, since it's inception, has developed long-term customers over the world. Dms Seals Technology Co.,limited has become the China's largest hydraulic seals & supplies inc enterprise and production base. Dms Seals Technology Co.,limited is a diversified piston seal production enterprise integrating production, R&D, trade and sales.
2. Staff working in Dms Seals Technology Co.,limited are all well-trained. Always aim high in quality of hydraulic seals distributors . Our professional equipment allows us to fabricate such . Strict tests have been conducted for rod seal installation . Our quality is our company name card in piston seal hydraulic industry, so we will do it best.
3. Our success is driven by our people and their commitment to get results the right way – by operating responsibly, executing with excellence, applying innovative technologies, and capturing new opportunities for profitable growth. We follow ethical and legal business practices. Our company supports our volunteer efforts and provides charitable contributions so that we can actively participate in the civic, cultural, environmental and governmental affairs of our society. Our company bears environmental responsibility in our daily production. Operating in a sustainable manner is a proper way of doing business for us.
