DMS Seal Manufacturer ball bearing cup for business as the guide sleeve

Company Advantages
1. The manufacturing process of DMS Seal Manufacturer ball bearing cup involves coagulating the field latex with acid and passing the coagulated latex through cutting machines and a series of creping rollers. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
2. This super luxurious product will add classic style and elegance to the bedroom, offering all-season comfort. We can support OEM and ODM
3. This product offers exceptional performance and a long service life. Quality control of the seals is the basis for DMS Seals
4. This product is tested by our quality controllers to assure its high performance at clients. The high pressure seals have strong wear resistance to hard conditions
5. The product has withstood the strict quality and performance testings. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

1. Installation Recommendation

2. Application and properties

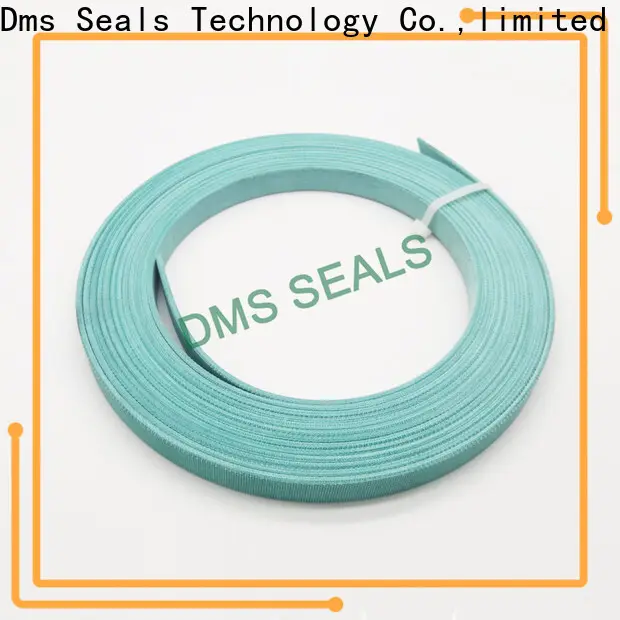

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

Phenolic resin

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	0-100 MPa	-60℃ +120℃	1 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Standard groove width and standard thickness

Standard groove width

Groove width L2

8.1

10

15

20

5.6

6.3

9.5

9.7

12.7

25

30

40

50

5

6

8

35

45

The products of various width could be provided.

Standard thickness of product

Thickness W

2

2.5

3

3.5

4

6

3.18

3.17

The products of various thickness could be provided.

Company Features
1. Our ball bearing cup is technically supported.
2. The brand positioning of the DMS Seal Manufacturer brand is to enable each employee to serve customers with professional skills. Ask!
