DMS Seal Manufacturer Best 1 roller ball bearing wear ring as the guide sleeve

Company Advantages
1. 1 roller ball bearing is excellent in outlook as you can see by pictures.
2. DMS Seal Manufacturer 1 roller ball bearing is manufactured using quality proven materials.
3. from Dms Seals Technology Co.,limited must be built in fine, exquisite and .
4. It is safe to use. Its housing materials, as well as the electric parts, are well inspected to eliminate all of the toxic substances.
5. It is characterized by its excellent dimensional stability. It has been processed by annealing which hardens and fixes its structure bonds by heating up to the vitrification temperature or crystallization temperature.
6. The product has good anti-electromagnetic interference. It is designed with special electromagnetic interference suppression components to reduce electromagnetic wave.
7. The product is easy to move. The design of the heavy-duty multi-way roller enables easy movement through the ceiling track.
8. The product helps create a clear floor. It is supported on tracks from above — no floor tracks, no tripping hazards, and no crevices to collect debris.
9. Promoting the service with care and consideration is very essential for DMS Seal Manufacturer.
10. The service of DMS Seal Manufacturer is so professional that attracts many customers.
11. Dms Seals Technology Co.,limited hopes to continue to improve 1 roller ball bearing with better quality and moderate prices.
12. Owing to the service provided to customer, Dms Seals Technology Co.,limited is developing better and better.
13. As to Dms Seals Technology Co.,limited's sales network, we have many sales agents throughout the country.

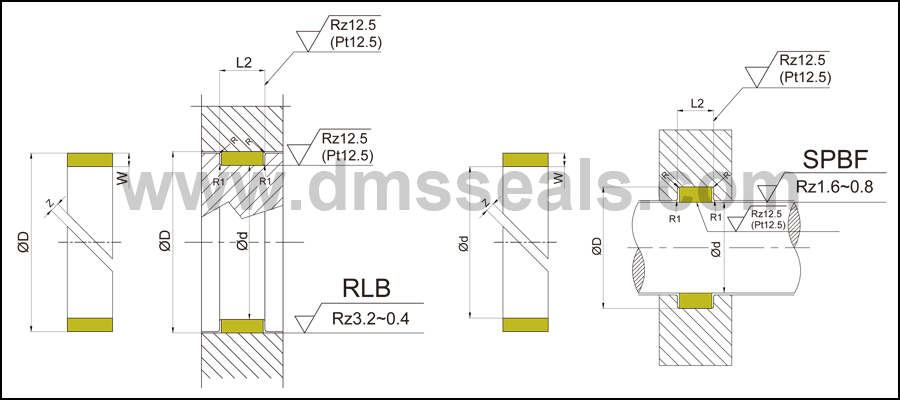

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.
