DMS Seal Manufacturer Best bonded piston seal manufacturers for threaded pipe fittings and plug sealing

Company Advantages
1. DMS Seal Manufacturer is certified under both domestic and international certifications. It has passed the CCC, CE, RoHS, ENEC， UL, and CB certificates.
2. The materials for manufacturing DMS Seal Manufacturer are carefully chosen. The selection is based on the demands of the building sector, so they are homogeneous and uniform in composition.
3. The safety of DMS Seal Manufacturer will be guaranteed by a series of standards. It is strictly in line with IEC international safety standards, electrical devices compatible standards, and electric leak-proof standards.
4. The product can last for a long time. It is built with an intelligent circuit which can provide protection from overload protection or electrical leakage.
5. There are no impurities or natural wax on the product. The scouring process applied in its production helps eliminate wax and non-fibrous impurities such as remains of seed fragments.
6. It is renowned for its high-performance electric components. The printed circuit board (PCB), is manufactured with high precision and fast transmission speed.
7. The product has a strong resistance to corrosion. Non-corrosive materials are used to enhance its capacity to withstand rust and alkalinity or acidity liquid.
8. This product acts as an implementing measure to cut people's carbon footprint. It can significantly reduce their emissions contribution.
9. The product has become a necessity for the way we live today. It either reduces or eliminates the amount of human work required to accomplish a task during production.
10. The use of this product helps increase workers' efficiency and overall productivity, which means it increases profits and cut labor costs at the same time.
11. The product has a huge impact on the environment. With its enhanced low energy consumption, it contributes to the reduction of carbon emission.
12. 'The product is so light and easy to move, the rooms can be reconfigured quickly with very little effort', said one of the hotel owners.

1. Applicability

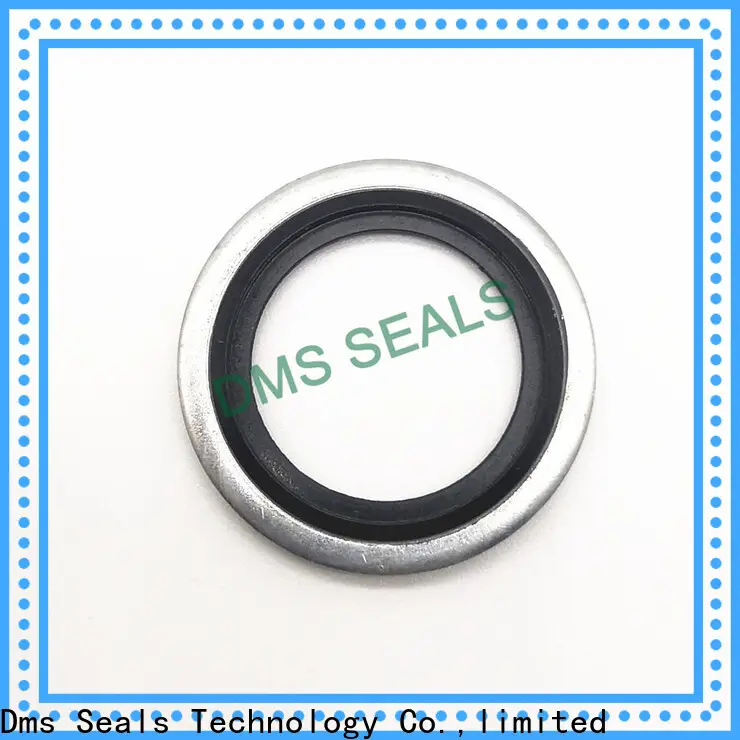

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Aided by highly advanced technology, DMS Seal Manufacturer is a wide famous exporter in the field of bonded piston seal . Dms Seals Technology Co.,limited has a good reputation in the field of dowty bonded seal washer . DMS Seal Manufacturer brand has been skilled at producing first-rate bonded seal dichtung . Dms Seals Technology Co.,limited is an enterprise which is professional in producing viton sealing washer . Dms Seals Technology Co.,limited is a metric bonded sealing washers manufacturer integrating production and sales.
2. We have a motivated, experienced customer service team that works directly with our customer's engineers to provide high-level assistance. From the pre-development, the design phase to production and after-sales stages, they are able to offer all kinds of supports to clients. We have brought together a professional R&D team. With their years of development expertise, they can quickly identify market challenges before they innovate products. We have an experienced project management team that acts as the role of our business success. Their manufacturing management expertise ensures quick turnaround times and excellent quality for our products.
3. Listing metric bonded seals to be the main part is the culture of DMS Seal Manufacturer. Get info! Our hope is to open the bonded seal sizes market with our reliable and excellent . Get info! The service concept of in Dms Seals Technology Co.,limited emphasize on . Get info! With the emerging of economic, we put forward the concept of sealing washers manufacturer to be more concentrated on this field. Get info! Dms Seals Technology Co.,limited can provide OEM service for customers. Get info!
