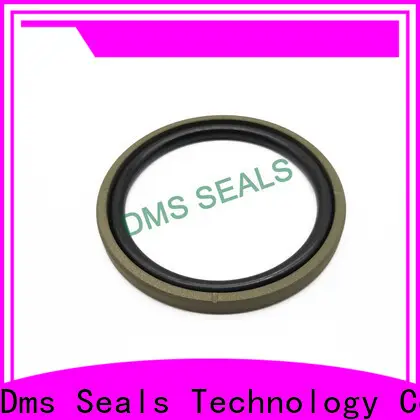

DMS Seal Manufacturer Best hallite hydraulic seals Suppliers for pneumatic equipment 1

DMS Seal Manufacturer Best hallite hydraulic seals Suppliers for pneumatic equipment 2

DMS Seal Manufacturer Best hallite hydraulic seals Suppliers for pneumatic equipment

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The material and design Dms Seals Technology Co.,limited adopted highly improve the performance of hallite hydraulic seals . DMS Seals implements and optimizes its quality control systems
2. The detailed beauty of stoneware with a translucent glaze over an embossed and debossed pattern make it ideal for any formal occasions. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. All parts of this product meet the required criteria. DMS Seals provides professional design and production of high-grade o-ring seals

1. Installation Recommendation

2. Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

DN H9

d1 h9

L1+0.2

3.1

5.1

7.1

2.2

GSF8*3.1*2.2

GSF10*5.1*2.2

GSF12*7.1*2.2

2.90*1.78

4.80*1.8

6.70*1.8

9.1

10.1

7.5

2.2

3.2

GSF14*9.1*2.2

GSF15*10.1*2.2

GSF15*7.5*3.2

8.75*1.8

7.59*2.62

8.75*1.8

11.1

8.5

13.1

2.2

3.2

2.2

GSF16*11.1*2.2

GSF16*8.5*3.2

GSF18*13.1*2.2

10.82*1.78

7.59*2.62

12.42*1.78

10.5

15.1

12.5

3.2

2.2

3.2

GSF18*10.5*3.2

GSF20*15.1*2.2

GSF20*12.5*3.2

9.19*2.62

14.00*1.78

12.37*2.62

19.1

16.5

17.5

2.2

3.2

GSF24*19.1*2.2

GSF24*16.5*3.2

GSF25*17.5*3.2

18.77*1.78

15.54*2.62

17.12*2.62

20.5

4.2

3.2

4.2

GSF25*14*4.2

GSF28*20.5*3.2

GSF28*17*4.2

13.87*3.53

20.29*2.62

15.47*3.53

22.5

24.5

3.2

4.2

3.2

GSF30*22.5*3.2

GSF30*19*4.2

GSF32*24.5*3.2

21.89*2.62

26.70*1.78

23.47*2.62

Company Features
1. hallite hydraulic seals series products are the main products of Dms Seals Technology Co.,limited.
2. We expect no complaints of hydraulic packing kits from our customers.
3. hydraulic cylinder seal design is our aim. Please contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
