DMS Seal Manufacturer best hydraulic cylinder piston rings Supply to high and low speed

Company Advantages
1. The design of DMS Seal Manufacturer has taken different aspects into consideration. It is created by our designers who consider the bathroom space, style matching, and overall aesthetic appeal.
2. The cutting process is one of the important steps in manufacturing DMS Seal Manufacturer . This process is focused on two things: the aesthetics and the reduction of wastage.
3. A series of tests for DMS Seal Manufacturer is required. The product has been rigorously inspected or tested in the aspects of the electric current, electric field, electromagnetism, input voltage, and surge current.
4. The QC team is highly responsible for the quality of the product.
5. This product under strict quality control systems meets global standards.
6. The product is valued for their features like durability, long-lasting functionality, and long service life.
7. The product is widely demanded in the global market and has the potential to be applied more in the future.
8. The product has attracted more and more customers in the industry for its wide range of application prospects.
9. This DMS Seal Manufacturer branded product will find a ready market overseas.
10. The product is able to meet the exact needs of clients and is now widely used in the global market.
11. The product offered by us is in high demand in the national as well as the international market.

1. Installation Recommendation

2. Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM





4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ + 200℃	1.5m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

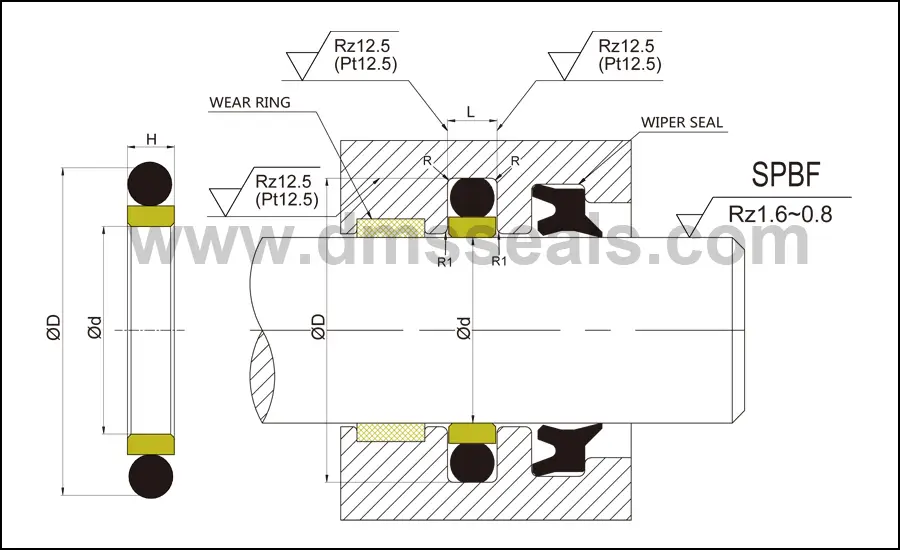

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25*34*4 SPNO28*37*4 SPNO30*39*4
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32*41*4 SPNO36*45*4 SPNO40*49*4
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO150*170*10 SPNO160*180*10 SPNO170*190*10

Company Features
1. As a experienced manufacturer for hydraulic cylinder piston rings , Dms Seals Technology Co.,limited enjoys wide popularity. As a backbone enterprise, Dms Seals Technology Co.,limited has build cooperation relationships with many distinguished companies. Dms Seals Technology Co.,limited is well-known for its large capacity and stable quality for hydraulic gasket sealant . piston seal hydraulic in Dms Seals Technology Co.,limited sells all over the world.
2. Dms Seals Technology Co.,limited has further improved our technological research system to reallocate and leverage the innovation resources. Technology used in wiper seal is more advanced than other companies. Dms Seals Technology Co.,limited constantly improving its technology to produce better quality of spareage piston seals . DMS Seal Manufacturer's factory has many product R&D engineers and pattern-making engineers. With its stable product quality and its brand, Dms Seals Technology Co.,limited has established service networks nation-wide to serve consumers.
3. We partner with responsible vendors to ensure proper management of waste. We utilize the waste management hierarchy to reduce wastes generated and reuse materials as possible. We are committed to building an equal and united group. We are making efforts in giving equal amounts of attention and importance to our employees, including their expertise, abilities, and values. Call! Dms Seals Technology Co.,limited provides professional service for every customer. Call! Our company attaches great attention to diversity and regards it as our core value. We succeed under the wisdom of people with different ideas, strengths, interests, and cultural backgrounds. Call!
