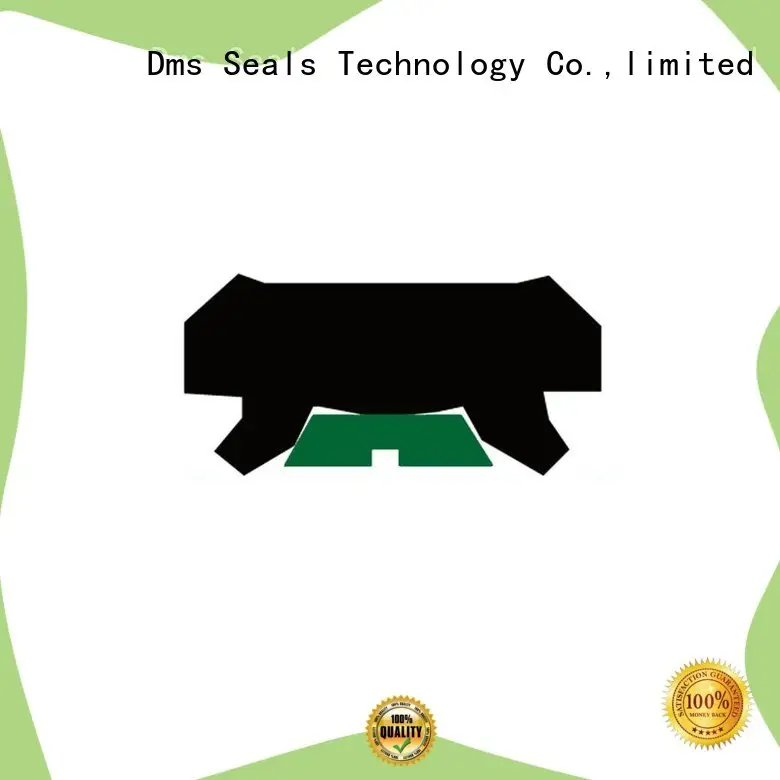

DMS Seal Manufacturer Best hydraulic cylinder seals with nbr or fkm o ring to high and low speed

Company Advantages
1. DMS Seal Manufacturer is manufactured by a quality oriented organization.
2. DMS Seal Manufacturer hydraulic cylinder seals is specially designed to be more compatible for our customers' choices.
3. The production of DMS Seal Manufacturer is paid continuous and in-depth attention to meet customers' needs.
4. The product has good dimensional stability. Through the heat setting process, the fiber inner stress is eliminated and physical and mechanical properties have been improved.
5. The product features stable performance. The electrical leakage risks have been eliminated, ensuring that it can work under low leakage rates.
6. The product has fine strength and elongation. A certain amount of elasticizer is added into the fabric to enhance its capacity of tear resistance.
7. The product is not prone to yellowing. Its surface has been specially treated to enhance its contacting performance with oxygen in the air.
8. This product is suitable for a wide range of applications.
9. The excellent characteristics give the product greater market application potential.
10. With the above good characteristics, the product has good competition capacity and a good development prospect.
11. The product, with so many advantages and huge economic benefits, has gradually developed to a popular trend in the industry.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15
