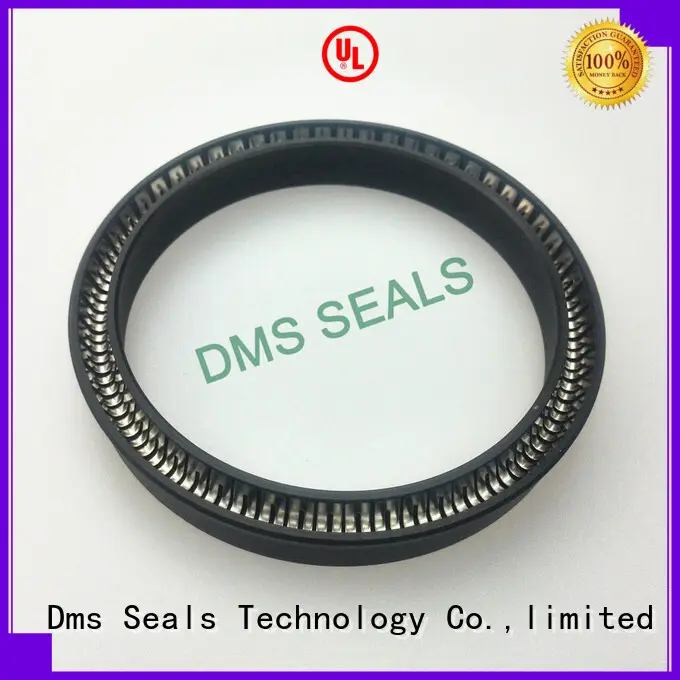

DMS Seal Manufacturer Best oil seal spring for business for aviation

Company Advantages
1. A broad range of performance tests for DMS Seal Manufacturer has been conducted. They are anti-bacterial testing, abrasion resistance testing, moisture-wicking, rigidity, and strength testing.
2. Various tests are conducted on DMS Seal Manufacturer . They are in accordance with national and international standards, such as EN 12528, EN 1022, EN 12521, and ASTM F2057.
3. DMS Seal Manufacturer has gone through some important production stages. They cover the preparation of raw materials, parts machining, plating and anodizing, assembly, and testing.
4. Comprehensive tests are performed to assess the quality of DMS Seal Manufacturer . They include mechanical testing, chemical testing, finish testing, and flammability testing.
5. DMS Seal Manufacturer will go through a third-party validation for furniture performance. It will be checked or tested in terms of durability, stability, structural strength, and so on.
6. The product has fine workmanship. Its details have undergone additional steps of fine processing of trimming the edges.
7. The product can stay in good shape. Made of superior materials, added with a stable and robust structure, it is not likely to deform over time.
8. The product is innoxious. It has passed the chemical properties test, which verifies that it contains no dimethyl fumarate, carcinogenic and allergy-inducing dyes, and azo dyes.
9. High efficient order operation and stocks of Dms Seals Technology Co.,limited assure rapid delivery.
10. Our customer service team has been always dedicated to solving problems about oil seal spring .
11. Dms Seals Technology Co.,limited provides opportunities for growth and development to our partners.
12. Dms Seals Technology Co.,limited is committed to serving customers with sales and after-sales service network.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features
1. As the increasing demand of oil seal spring , DMS Seal Manufacturer now has been marching forward to a bigger goal. Dms Seals Technology Co.,limited is a leading enterprise of the modern mechanical seal principle manufacturing industry in China. Dms Seals Technology Co.,limited is the world's largest producer of mechanical seals online , with a magnificent production.
2. Dms Seals Technology Co.,limited has a specialized production base and a sound supply chain for spring energized seal design . Dms Seals Technology Co.,limited always leads the mechanical seal sleeve industry in technology. The production machines in Dms Seals Technology Co.,limited are advanced. Thanks to our advanced machines, the productivity and quality of rotary lip seal application is highly increased. shaft seals for dynamic applications is well recognized by its quality.
3. The professional services for conical spring mechanical seal can be fully guaranteed. Inquire now! Dms Seals Technology Co.,limited adheres to the pursuit of long-term cooperation with customers. Inquire now! Dms Seals Technology Co.,limited is always prepared to supply you with a complete assortment of services. Inquire now! The DMS Seal Manufacturer brand has been cultivating the persistence of employees. Inquire now!
