DMS Seal Manufacturer best rod seal catalogue supplier for sale

Company Advantages
1. DMS Seal Manufacturer rod seal catalogue is meticulously manufactured. The engineers will again and again confirm the geometric details supplied are correct before the commencement of work.
2. The production of DMS Seal Manufacturer rod seal catalogue adopts the most advanced facilities. It will be processed orderly by board dividing saw, four-side moulder, wood sanding machine, edge banding machine, etc.
3. The quality of DMS Seal Manufacturer rod seal catalogue is ensured. It is made by a quality conscious manufacturer who invests good money in conducting different tests, such as vibration test, bursting test, and compression test.
4. The product has a large capacity. With multi-compartments, it is designed to carry a lot of things and keeps these things organized.
5. This product is durable. The steel used in it is handled by oxidation, hence, it will not rust and easily fall apart.
6. Excellent leakproofness is one of its biggest selling points. Some small power components have been added to the passage to pose pressure on the leakage objects to balance or offset the differential pressure.
7. This product would benefit business owners a lot. It allows the production projects to be finished in a short time, which reduces the waste of time.
8. This product can bring huge benefits for business owners, such as its incredible safety. It can ensure a decrease in work accidents.
9. This product can flexibly adapt to the changing working requirements. It can meet the specific needs and workload.
10. This product can help people finish tasks that are too heavy or difficult. It significantly reduces the work burden for people.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter    dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.

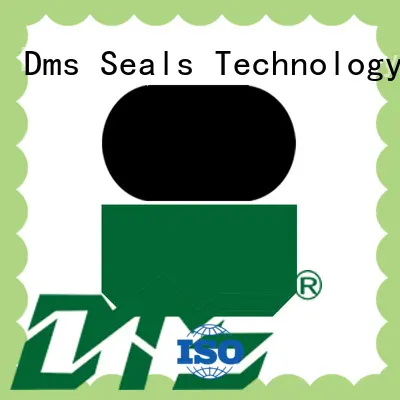

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas



6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI20*27.3*3.2 GSI20*30.7*4.2 GSI22*29.3*3.2	21.89*2.62 25.0*3.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI22*32.7*4.2 GSI24*31.3*3.2 GSI25*32.3*3.2	26.57*3.53 26.64*2.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI25*35.7*4.2 GSI26*36.7*4.2 GSI28*35.3*3.2	29.74*3.53 29.74*3.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI28*38.7*4.2 GSI30*37.3*3.2 GSI30*40.7*4.2	32.92*3.53 32.99*2.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI32*39.3*3.2 GSI32*42.7*4.2 GSI35*42.3*3.2	34.59*2.62 36.09*3.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI35*45.7*4.2 GSI36*43.3*3.2 GSI36*46.7*4.2	37.69*3.53 39.34*2.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI38*48.7*4.2 GSI38*53.1*6.3 GSI40*50.7*4.2	40.87*3.53 43.82*5.33 44.04*3.53

Company Features
1. As the pathbreaker in the o-ring seal business, Dms Seals Technology Co.,limited works hard all the time. Excelling most of the Chinese O Ring Manufacturers manufacturers, Dms Seals Technology Co.,limited continues doing the endeavor to be a strong player in the world. Dms Seals Technology Co.,limited has attained long-term steady development in the field of rod seals .
2. Dms Seals Technology Co.,limited has exceptional advanced manufacturing gear and equipment. We have won over many customers all around the world thanks to our complete sales-service system and our customer service team who strives to provide the most intimate service for customers. With a strong R & D team and advanced technology, Dms Seals Technology Co.,limited could provide professional technical support and quality products. Dms Seals Technology Co.,limited has an well-recognized hydraulic rod seals specialist team.
3. In order to raise the satisfication of DMS Seal Manufacturer, we have been doing our utmost to help serve the customers. Get info! Our first-class service will provide you with best purchasing experience for o-ring seal. Get info! DMS Seal Manufacturer survives with quality, seek for development with technology. Get info! Dms Seals Technology Co.,limited will work hard to expand the network layout to further strengthen the globalization of the DMS Seal Manufacturer. Get info!
