DMS Seal Manufacturer Best rubber piston seal manufacturers to high and low speed
1. DMS Seal Manufacturer is made of optimal-quality materials and manufactured under the strict supervision of our production team according to the lean production method. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. The product gets a lot of compliments: it looks flattering, stylish and fits well. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience Improve overall temperament. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. Manual inspection and equipment testing both have been carried out to ensure that the product is 100% qualified. Seal we produced has applications in a wide range of fields
4. rubber piston seal 's quality is stable and reliable. DMS Seals implements and optimizes its quality control systems
1. Installation Recommendation
2. Application and properties

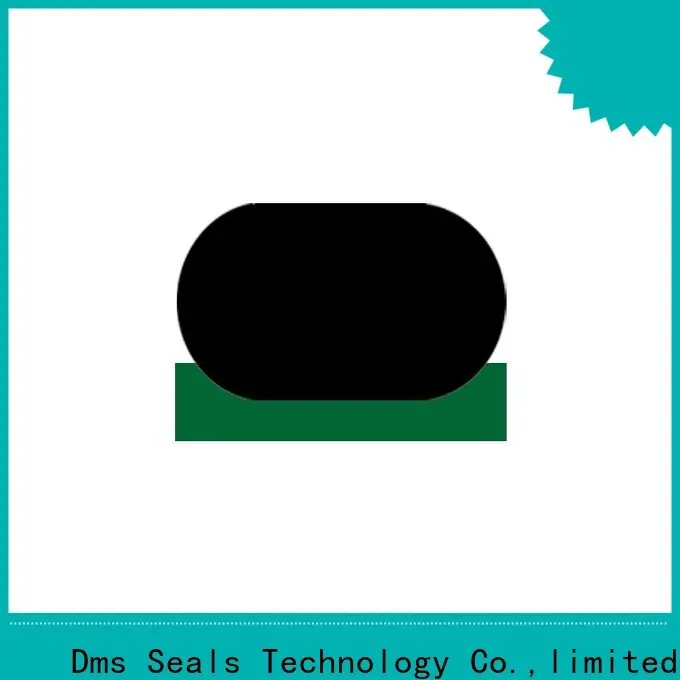

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
5. Installation Dimensions
Order No. | ||||
d | D | H | L +0.2 | |
3 4 5 | 6 7 8 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5 |
6 7 8 | 9 10 11 | 2.3 2.3 2.3 | 2.5 2.5 2.5 | SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5 |
9 10 10 | 12 13 14 | 2.3 2.3 3.0 | 2.5 2.5 3.2 | SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2 |
11 11.2 12 | 15 15.2 16 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2 |
12.5 14 15 | 16.5 18 19 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2 |
16 18 20 | 20 22 24 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2 |
20 21 22 | 24 25 26 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2 |
22 22.4 24 | 28 28.4 30 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7 |
25 25.5 26 | 31 31.5 32 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7 |
28 29 29.5 | 34 35 35.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7 |
30 31 31.5 | 36 37 37.5 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7 |
32 34 35 | 38 40 41 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7 |
35.5 36 38 | 41.5 42 44 | 4.4 4.4 4.4 | 4.7 4.7 4.7 | SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7 |
Company Features
1. Dms Seals Technology Co.,limited has strong technical strength for developing rubber piston seal .
2. Dms Seals Technology Co.,limited is able to make the right decisions for our customers. Call now!
