DMS Seal Manufacturer best sunny oil seal manufacturer o ring

Company Advantages
1. As one of the unique feature, successfully makes sunny oil seal manufacturer more popular among customers.
2. Materials used for sunny oil seal manufacturer is periodically renovate to make it own best properties.
3. Dms Seals Technology Co.,limited can satisfy different design requirements.
4. This product comes with strength suitable to withstand shipment, storage, and handling. It is able to handle the wear-and-tear of a 3,000-mile sea journey and movement by a crane while in port.
5. This product has good electromagnetic compatibility. The spacing of the transmission lines in the circuit board will be scientifically arranged to help reduce the interference caused by transient currents.
6. The product can run uninterruptedly. Its excellent mechanical properties enable it to work stably and reliably all the time without malfunction.
7. The product features flexible configurations. It is easy to move and its reasonable size does not occupy too much working space.
8. The product has been applied widely in the market and has a great market prospect.
9. Due to the above advantages, the product has a broader and wider market.
10. This product is favored by customers for its excellent performance and excellent economic and commercial value.
11. This product enjoys a high reputation in the market and has great market application prospects.

1. Installation Recommendation

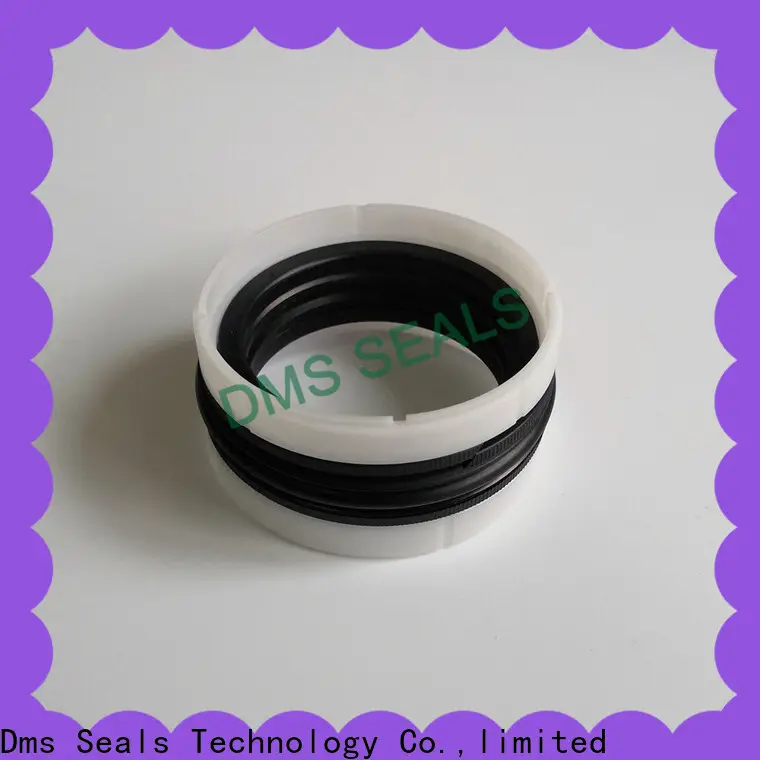

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃ +120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

5. Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1

Company Features
1. Dms Seals Technology Co.,limited, a Chinese sunny oil seal manufacturer manufacturer, has professional and abundant experience in developing, manufacturing, and supplying in the industry. Dms Seals Technology Co.,limited is a professional China-based manufacturer. Additional recognition has gained from national and international competitors due to our ability in manufacturing . Dms Seals Technology Co.,limited has won the recognization in the market due to the remarkable competence in developing and manufacturing . Dms Seals Technology Co.,limited has accumulated years of experience in the production of . We have been one of the leading producer and distributor in the industry. Dms Seals Technology Co.,limited takes superiority in the manufacturing of . We have already enhanced competence in today's fierce market competition.
2. DMS Seal Manufacturer is proud of owning advanced technical force to create pump seal manufacturers . For DMS Seal Manufacturer, product quality and service requirements are almost extreme. By applying high technology into producing bonded seal supplier , DMS Seal Manufacturer is stand out in the industry. Our dowty seal manufacturer is a cost-effective product which enjoy high quality. DMS Seal Manufacturer is designed in our advanced design lab split oil seal manufacturer .
3. Dms Seals Technology Co.,limited is committed to doing domestic rubber seal molding into a first brand. Check it! Customers will definitely find something interesting at DMS Seal Manufacturer. Check it! With the benefits of wheel seal manufacturers sector, DMS Seal Manufacturer brand will grow rapidly because of its considerate support. Check it! Dms Seals Technology Co.,limited will enhance the reputation of common seal manufacturers products. Check it!
