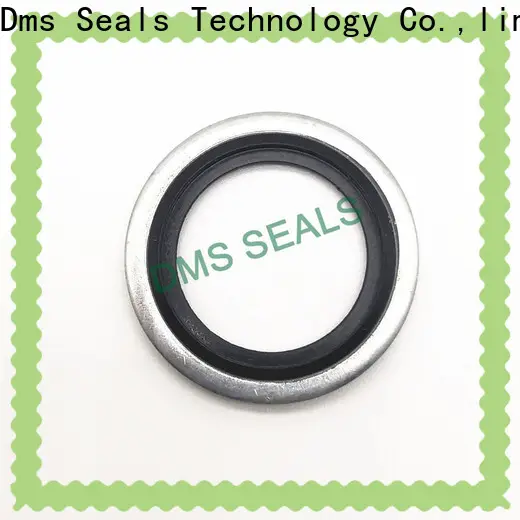

DMS Seal Manufacturer bonded seals catalogue factory for fast and automatic installation

Company Advantages
1. Owing to the years of industrial experience, DMS Seal Manufacturer is elaborately manufactured in an accurate and effective way.
2. The design of DMS Seal Manufacturer has been viewed to be highly original.
3. The offered bonded seals catalogue is precisely produced with the help of finest grade material in compliance with set industry standards.
4. DMS Seal Manufacturer bonded seals catalogue is manufactured at a quick rate due to the high efficiency of production equipment.
5. DMS Seal Manufacturer bonded seals catalogue has a user-friendly design featuring both functionality and aesthetics.
6. The product is bacteria and fungi resistant. During the cleaning stage, it has gone through antibacterial and sterilization treatment, and the surface is finely polished to a very smooth level, which can effectively kill the bacteria.
7. The product can reduce power loss. Its face parts are kept lubricated with a film of fluid, combined with the perfect spacing between the faces, contribute less friction which means lose less power.
8. This product is watertight and meets the International Standard for waterproofing. Its waterproof membrane or coating will prevent water droplets from penetrating through the fabric.
9. The product always operates stably. It can endure the instantaneous change of current and overload with its overloading protection.
10. The product is not affected by the humid environment. All of its electric components are finely sealed inside the housing, which makes them not be damaged by the external conditions.
11. Dms Seals Technology Co.,limited attaches great importance on package for bonded seals catalogue .
12. The equipment of advanced development guarantees the production of a bonded seals catalogue .
13. With an annual sales for volume ranking first in the industry, Dms Seals Technology Co.,limited's sales volume of self-owned brands ranks first in China's bonded seals catalogue companies.
14. The experimental results show that is superior to other bonded seals catalogue in terms of quality.
15. Improved bonded seals catalogue , especially from Dms Seals Technology Co.,limited, are increasingly becoming popular.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. DMS Seal Manufacturer has been a remarkable enterprise in bonded seals catalogue industry. Dms Seals Technology Co.,limited has long been committed to R&D, production and sales of steel washer with rubber seal . DMS Seal Manufacturer is a strong company with a good reputation in the washers and seals industry.
2. DMS Seal Manufacturer is a famous brand that focuses on the quality of metric bonded seals . DMS Seal Manufacturer Establish a competent laboratory to create oil seal washer . The technology mastered by Dms Seals Technology Co.,limited has allowed us to make progress in the bonded seal ring industry and even reach the international advanced level. bonded washers suppliers is created by the revolutionary technology. The stainless steel bonded washers production technology has brought more benefits for DMS Seal Manufacturer.
3. Dms Seals Technology Co.,limited always satisfies the true needs of every customer and aims to produce perfect bonded washer dimensions. Inquire now! To be a pioneer in o ring seal supplier sector, Dms Seals Technology Co.,limited has been doing our utmost to serve clients. DMS Seal Manufacturer dreams to surpass many companies in the this industry. Inquire now! Dms Seals Technology Co.,limited is proud of distinctive culture and excellent organizational soul, and we are not going to let you down. Inquire now!
