DMS Seal Manufacturer Brand hydraulic oring piston seals seal factory

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The high pressure seals have strong wear resistance to hard conditions. We have employed a skilled team of professionals which is a vital asset of DMS Seal Manufacturer organization. Professionals working with us enable us to earn the remarkable position in the respective domain.
2. Since piston seals's put into market, it has received good comments from customers. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. The product is guaranteed to be of reliable quality as we regard quality as our top priority. DMS Seals takes the lead in grasping the development trend of the industry
4. The product is treasured for its consistent performance and optimum functionality. Seal we produced has applications in a wide range of fields
5. Its quality is examined under the supervision of our skilled quality experts. DMS Seals implements and optimizes its quality control systems

Installation Recommendation

undefined

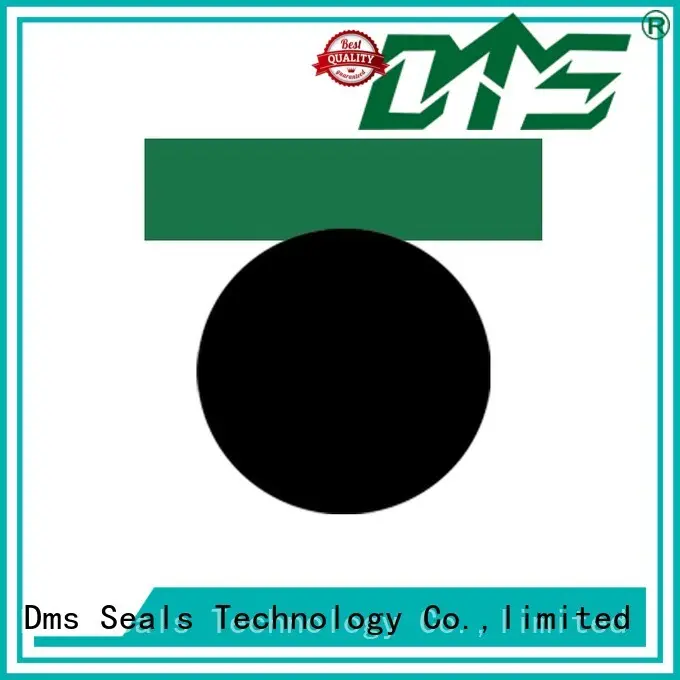

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. When it comes to piston seals, Dms Seals Technology Co.,limited ranks top as a powerful manufacturer.
2. Our quality system has been certified to ISO 9001 since pneumatic piston seals and a plant-wide hydraulic piston seals system keeps the business running smoothly.
3. DMS Seal Manufacturer holds the firm belief that this brand will become a worldwide famous speaker for o-ring seal. Inquire now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
