DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

DMS Seal Manufacturer Brand nbrfkm hydraulic rod seals oring factory

Diameter Range:

6-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃ +200℃

Speed:

1.5 m/s

Medium:

general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

Inquiry

Company Advantages
1. The high pressure seals have strong wear resistance to hard conditions. The hydraulic rod seals that is reinforced with piston rod seal composite is unique and in the hydraulic rod seals online machinery industry only to be found in DMS Seal Manufacturer.
2. 'Strictly abide by the contract and deliver promptly' is Dms Seals Technology Co.,limited's consistent principle. DMS Seals' production equipment and test equipment are on the leading level in the industry
3. rod seals is widely polulor around the world. DMS Seals provides professional design and production of high-grade o-ring seals

Installation Recommendation

undefined

Application and properties

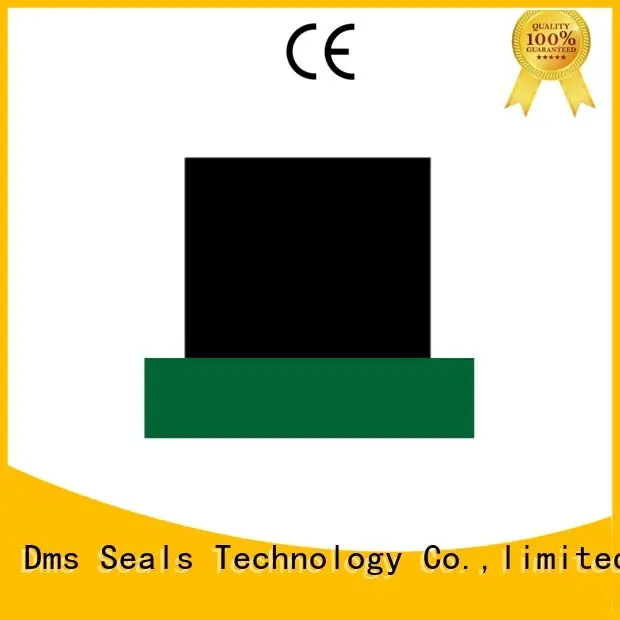

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2	Order No.
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18274.3 SPN20294.3 SPN22314.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27364.3 SPN31.540.54.3 SPN47607.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53667.3 SPN60737.3 SPN65787.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70837.3 SPN75887.3 SPN80937.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90103.47.3 SPN100113.47.3 SPN110123.47.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120133.47.3 SPN130143.47.3 SPN140153.47.3

Company Features
1. In Dms Seals Technology Co.,limited, only finest-quality rod seals can be provided.
2. Dms Seals Technology Co.,limited keeps concentrated on superior service for customers. Please contact us!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
