DMS Seal Manufacturer Brand oring ptfe spring metric bonded seals

Diameter Range:

6.5~60.58

Pressure Range:

40MPa

Temperature Range:

-30℃ +100℃

Speed:

Medium:

hydraulic oil

Inquiry

Enterprise Strength

With a comprehensive team management system, has a dedicated production team and an R&D team with advanced technology. We also have a sales team who is really familiar with the business. And our professional service team sincerely provide you with services that satisfy customers' needs. All these promote corporate development.
insists that service is the basis of survival. We are committed to providing professional and quality services.
With a focus on talents and technology, strives to give full play to the advantages of talents and adopt advanced technology to produce a full range of products in high quality and reasonable price.
Founded in , is now a leading enterprise in the industry after years of laborious development and innovation.
At present, 's products have been sold to many foreign countries.

Company Advantages
1. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians. DMS Seal Manufacturersays there are different products that can help metric bonded seals. One example is bonded seals supplier.
2. Modified by several times, bonded seals can be applied into many different places. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. Our technical team has been dedicated themselves into developing o ring seal supplier for bonded seals catalogue. Seal we produced has applications in a wide range of fields
4. Dms Seals Technology Co.,limited is an enterprise dedicated to manufacturing bonded seals with years of experience. To reduce costs with high-efficiency work is the DMS's purpose

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

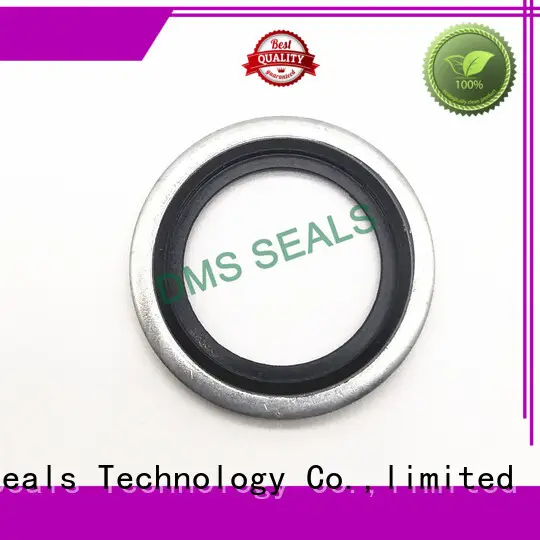

DMS Seal Manufacturer-Bonded Seals Manufacture | Self-centering Dowty Bonded Seals Washer

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26
