DMS Seal Manufacturer Brand ptfe hydraulic pneumatic piston seals nbrfkm supplier

Diameter Range:

3-1600mm

Pressure Range:

0-40MPa

Temperature Range:

-30℃+200℃

Speed:

2 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals. Thanks to the unique design of pneumatic piston seals, we are proud to present DMS Seal Manufacturer products to customers all over the world. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
2. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. The overall performance of the product has been significantly improved after years of efforts in R&D. Seal we produced has applications in a wide range of fields
4. It is very efficient for piston seals to reduce the energy cost of hydraulic piston seals sizes. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

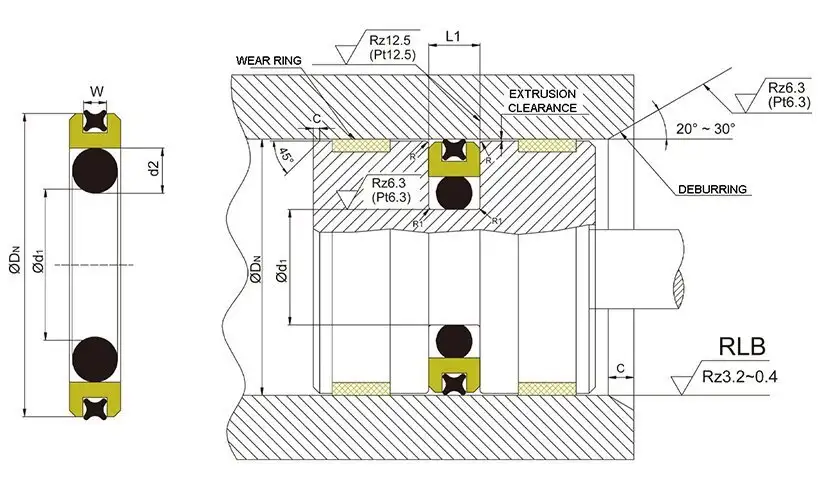

Installation Recommendation

undefined

Installation Sizes

Groove Diameter DN H9		Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross Section	X-Ring Seal Cross Section
Standard Application	Light Application	d1 h9	L1+0.2	R1	10MPa	20MPa	30MPa	d2	W
15 - 39.9	40 - 79.9	DN - 11.0	4.2	1.0	0.25	0.15	0.10	3.53	1.78
40 - 79.9	80 - 132.9	DN - 15.5	6.3	1.3	0.3	020	0.15	5.33	1.78
80 - 132.9	133 - 252.9	DN - 21.0	8.1	1.8	0.3	0.20	0.15	7.00	2.62
133 - 252.9	--	DN - 24.5	8.1	1.8	0.3	0.20	0.15	7.00	2.62
253 - 462.9	--	DN - 28.0	9.5	2.5	0.45	0.30	0.25	8.40	3.53
463 - 700	--	DN - 35.0	11.5	3.0	0.55	0.40	0.35	10.00	5.33

Application and properties

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.

Standard materials

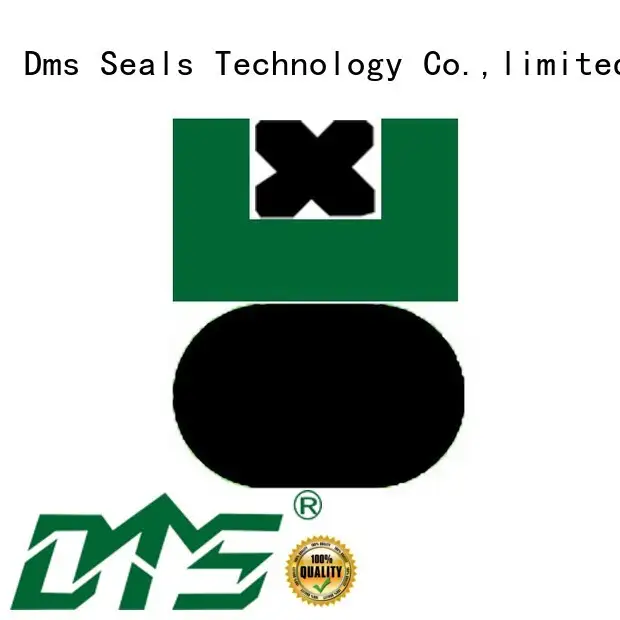

Sealing ring: filled PTFE

O-Ring: NBR / FKM

X-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-40MPa	-30℃+200℃	2 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimension
d h9	D1 H9	L1+0.2	Order No.	O-Ring Dimension
70 70 75	59 54.5 64	4.2 6.3 4.2	DAQ70594.2 DAQ7054.56.3 DAQ75644.2	56.743.53 53.343.53 63.09*3.53
80 80 85	64.5 59 69.5	6.3 8.1 6.3	DAQ8064.56.3 DAQ80598.1 DAQ8569.56.3	62.875.33 587.0 69.22*5.33
85 90 90	64 74.5 69	8.1 6.3 8.1	DAQ85648.1 DAQ9074.56.3 DAQ90698.1	637.0 72.395.33 68*7.0
95 95 100	79.5 74 84.5	6.3 8.1 6.3	DAQ9579.56.3 DAQ95748.1 DAQ10084.56.3	78.745.33 737.0 81.92*5.33
100 105 105	79 89.5 84	8.1 6.3 8.1	DAQ100798.1 DAQ10589.56.3 DAQ105848.1	787.0 88.275.33 83*7.0
110 110 115	94.5 89 99.5	6.3 8.1 6.3	DAQ11094.56.3 DAQ110898.1 DAQ11599.56.3	91.445.33 887.0 97.79*5.33
115 120 120	94 104.5 99	8.1 6.3 8.1	DAQ115948.1 DAQ120104.56.3 DAQ120998.1	937.0 100.975.33 98*7.0
125 125 130	109.5 104 114.5	6.3 8.1 6.3	DAQ125109.56.3 DAQ1251048.1 DAQ130114.56.3	107.325.33 1037.0 113.67*5.33
130 135 140	109 114 119	8.1 8.1 8.1	DAQ1301098.1 DAQ1351148.1 DAQ1401198.1	1087.0 113.675.33 116.84*7.0
150 160 170	129 139 149	8.1 8.1 8.1	DAQ1501298.1 DAQ1601398.1 DAQ1701498.1	126.377.0 135.897.0 145.42*7.0
180 190 200	159 169 179	8.1 8.1 8.1	DAQ1801598.1 DAQ1901698.1 DAQ2001798.1	158.127.0 164.477.0 177.17*7.0
210 220 230	189 199 209	8.1 8.1 8.1	DAQ2101898.1 DAQ2201998.1 DAQ2302098.1	183.527.0 196.227.0 208.92*7.0
240 250 250	219 229 225.5	8.1 8.1 8.1	DAQ2402198.1 DAQ2502298.1 DAQ250225.58.1	215.277.0 227.977.0 227.97*7.0

Installation Dimensions
