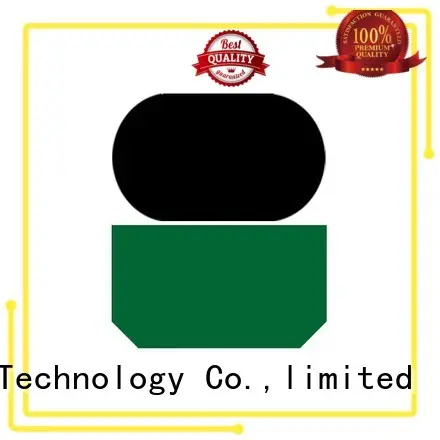

DMS Seal Manufacturer Brand ptfe hydraulic rod seals nbrfkm supplier

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. Moreover, we will cultivate our business little by little and perform each task step by step. Abiding by the management principle of 'Three-Good & One-Fairness (good quality, good credibility, good services, and reasonable price), we are looking forward to welcoming the new era with you.Seal we produced has applications in a wide range of fields
2. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. DMS Seal Manufacturer believes the achievement of customer expectation will enhance the customer satisfication.
3. DMS o-ring seal has advanced machines and equipment for its production. By the integration of hydraulic rod seals and piston rod seal, rod seals,hydraulic rod seals online is more popular among customers.
4. hydraulic rod seals is equipped with a remote which monitors anywhere, anytime using a tablet or smartphone. We have developed solutions of the sealing of special working condition
5. With the advantage of rod seal catalogue, in these decades, a lot of costumers have made repeat purchases of O Ring Manufacturers. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals

Installation Recommendation

undefined

Installation Sizes

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	colspan="3"> Radial Clearance S max.	O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots. Meet the standard of GB/T 15242.3.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0－60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2	Order No.	O-Ring Dimensions
4 5 6	8.9 9.9 10.9	2.2 2.2 2.2	GSI48.92.2 GSI59.92.2 GSI610.92.2	5.61.8 6.71.8 7.65*1.78
8 8 10	12.9 15.3 14.9	2.2 3.2 2.2	GSI812.92.2 GSI815.33.2 GSI1014.92.2	9.51.8 10.772.62 11.8*1.8
10 12 12	17.3 16.9 19.3	3.2 2.2 3.2	GSI1017.33.2 GSI1216.92.2 GSI1219.33.2	12.372.62 14.01.78 13.94*2.62
14 14 15	18.9 21.3 19.9	2.2 3.2 2.2	GSI1418.92.2 GSI1421.33.2 GSI1519.92.2	15.61.78 17.122.62 17.17*1.78
15 16 16	22.3 20.9 23.3	3.2 2.2 3.2	GSI1522.33.2 GSI1620.92.2 GSI1623.33.2	17.122.62 17.171.78 18.72*2.62
18 18 19	22.9 25.3 29.7	2.2 3.2 4.2	GSI1822.92.2 GSI1825.33.2 GSI1929.74.2	20.351.78 20.292.62 23.39*3.53
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI2027.33.2 GSI2030.74.2 GSI2229.33.2	21.892.62 25.03.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI2232.74.2 GSI2431.33.2 GSI2532.33.2	26.573.53 26.642.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI2535.74.2 GSI2636.74.2 GSI2835.33.2	29.743.53 29.743.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI2838.74.2 GSI3037.33.2 GSI3040.74.2	32.923.53 32.992.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI3239.33.2 GSI3242.74.2 GSI3542.33.2	34.592.62 36.093.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI3545.74.2 GSI3643.33.2 GSI3646.74.2	37.693.53 39.342.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI3848.74.2 GSI3853.16.3 GSI4050.74.2	40.873.53 43.825.33 44.04*3.53
40 42 42	55.1 52.7 57.1	6.3 4.2 6.3	GSI4055.16.3 GSI4252.74.2 GSI4257.16.3	43.825.33 47.223.53 46.99*5.33
45 45 48	55.7 60.1 58.7	4.2 6.3 4.2	GSI4555.74.2 GSI4560.16.3 GSI4858.74.2	50.393.53 50.175.33 51.5*3.55
48 50 50	63.1 60.7 65.1	6.3 4.2 6.3	GSI4863.16.3 GSI5060.74.2 GSI5065.16.3	53.345.33 53.573.53 56.52*5.33
52 52 54	62.7 67.1 69.1	4.2 6.3 6.3	GSI5262.74.2 GSI5267.16.3 GSI5469.16.3	56.743.53 56.525.33 59.69*5.33
55 55 56	65.7 70.1 66.7	4.2 6.3 4.2	GSI5565.74.2 GSI5570.16.3 GSI5666.74.2	59.923.53 59.695.33 59.92*3.53
56 58 60	71.1 73.1 70.7	6.3 6.3 4.2	GSI5671.16.3 GSI5873.16.3 GSI6070.74.2	62.875.33 62.875.33 63.09*3.53
60 63 63	75.1 73.7 78.1	6.3 4.2 6.3	GSI6075.16.3 GSI6373.74.2 GSI6378.16.3	66.045.33 66.273.53 69.22*5.33
65 67 70	80.1 77.7 80.7	6.3 4.2 4.2	GSI6580.16.3 GSI6777.74.2 GSI7080.74.2	69.225.33 72.623.53 75.79*3.53
70 72 75	85.1 82.7 85.7	6.3 4.2 4.2	GSI7085.16.3 GSI7282.74.2 GSI7585.74.2	75.575.33 75.793.53 78.97*3.53
75 80 80	90.1 90.7 95.1	6.3 4.2 6.3	GSI7590.16.3 GSI8090.74.2 GSI8095.16.3	81.925.33 85.323.53 85.09*5.33
83 85 86	93.7 100.1 96.7	4.2 6.3 4.2	GSI8393.74.2 GSI85100.16.3 GSI8696.74.2	88.493.53 91.445.33 91.67*3.53
90 90 92	100.7 105.1 102.7	4.2 6.3 4.2	GSI90100.74.2 GSI90105.16.3 GSI92102.74.2	94.843.53 94.625.33 98.02*3.53
95 95 100	105.7 110.1 110.7	4.2 6.3 4.2	GSI95105.74.2 GSI95110.16.3 GSI100110.74.2	101.193.53 100.975.33 104.37*3.53
100 105 105	115.1 115.7 120.1	6.3 4.2 6.3	GSI100115.16.3 GSI105115.74.2 GSI105120.16.3	107.325.33 110.723.53 110.49*5.33

Installation Dimensions

Company Features
1. DMS Seal Manufacturer has been committed to high-level quality and service for rod seals since the day of its establishment.
2. Inquire! DMS Seal Manufacturer Is Looking For Creditable hydraulic rod seals, hydraulic rod seals, piston rod seal Wholesale Agents All Over The World. Do Feel Free To Contact Us.
3. DMS Seal Manufacturer is committed to wining wide market with its core competitiveness. Inquire!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
