DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer Brand ptfe oring rod seals hydraulic factory
1. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience. Presented products are enormously appreciated by DMS Seal Manufacturer customers for characteristics such as hydraulic rod seals and piston rod seal.
2. DMS Seal manufacturer provides good quality and competitive price hydraulic seals. DMS Seal Manufacturer – a famous brand of rod seals,hydraulic rod seals online, proudly designs and produces hydraulic rod seals,rod seal catalogue.
3. Seal we produced has applications in a wide range of fields. Seal we produced has applications in a wide range of fields These features of O Ring Manufacturers,pneumatic rod seals behave with push rod seal.
4. Quality control of the seals is the basis for DMS Seals. Such design ensures o-ring seal,hydraulic rod seals has some necessary characters such as piston rod seal.

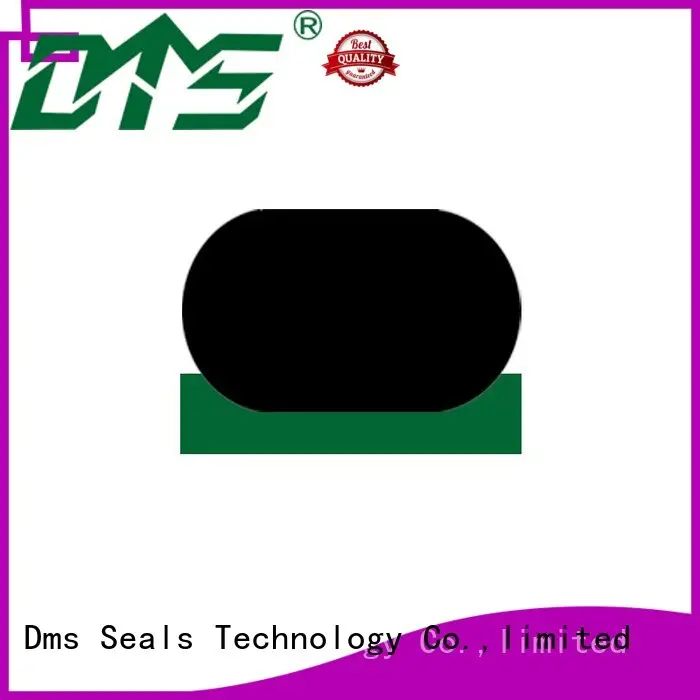

Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-35MPa | -30℃+200℃ | 1.5 m/s | general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil. |
Nominal Size of Packing, and Housing dimensions | Order No. | |||
d | D | H | L +0.2 | |
3 | 6 | 2.3 | 2.5 | SPNC3*6*2.5 |
6 | 9 | 2.3 | 2.5 | SPNC6*9*2.5 |
9 | 12 | 2.3 | 2.5 | SPNC9*12*2.5 |
11 | 15 | 3.0 | 3.2 | SPNC11*15*3.2 |
12.5 | 16.5 | 3.0 | 3.2 | SPNC12.5*16.5*3.2 |
16 | 20 | 3.0 | 3.2 | SPNC16*20*3.2 |
20 | 24 | 3.0 | 3.2 | SPNC20*24*3.2 |
22 | 28 | 4.4 | 4.7 | SPNC22*28*4.7 |
25 | 31 | 4.4 | 4.7 | SPNC25*31*4.7 |
28 | 34 | 4.4 | 4.7 | SPNC28*34*4.7 |
30 | 36 | 4.4 | 4.7 | SPNC30*36*4.7 |
32 | 38 | 4.4 | 4.7 | SPNC32*38*4.7 |
35.5 | 41.5 | 4.4 | 4.7 | SPNC35.5*41.5*4.7 |
